US$12,857.00
|
1 UNIT
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Name
Mini CNC Milling Machine
Table Travel
500X320X450mm
Distance From Spindle Center to Column G
370mm
Spindle End to Table Top
80-530mm
Main Motor
3.7kw(Variable Frequency Motor)
Transport Package
Ply Wooden Case
Product Description

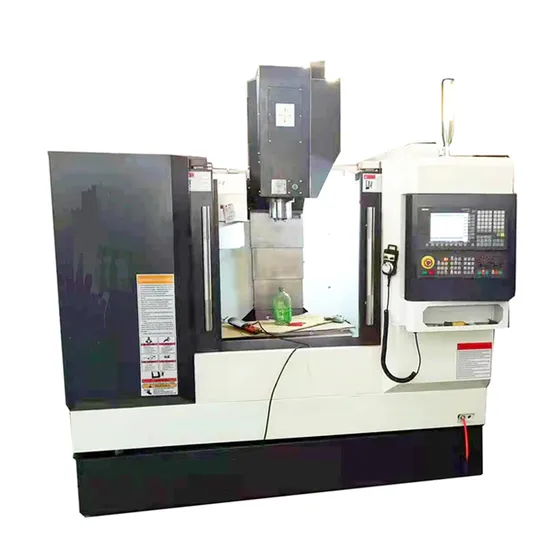

cnc vertical machining center XH7126 with 16pcs tools mini cnc millng machine
Main features:
1. mini cnc milling economic machine center is with box guideways, ensuring the machine's machining accuracy and stability.
2.The small vmc machine can be with taiwan arm type tool magazine or drum type tool magazine with 16 tools capacity.
It can change tools quickly.
3.The machine is with RS232 interface, separated handwheel, spindle blowing chip removal system.
| ltem | Unit | XH7126 |
| Worktable size | mm | 800*260 |
| T-slot(N*W*D) | mm | 3-14-85 |
| Max. load bearing of worktable | Kg | 200 |
| X axis travel | mm | 500 |
| Y axis travel | mm | 320 |
| Z axis travel | mm | 450 |
| Distance from column front to Spindle center | mm | 370 |
| Distance from table top surface to Spindle nose | mm | 80-530 |
| Spindle hole taper | | BT40-120 |
| Spindle power | KW | 3.7(optional 5.5) |
| Max. Spindle speed | rpm | 8000 |
| Max. feed speed | mm/min | 10000 |
| Rapid feed speed (XYZ) | mm/min | 24/24/20 |
| Positioning accuracy(XYZ) | mm | 0.016/0.016/0.016 |
| Re-positioning accuracy(XYZ) | mm | 0.006/0.006/0.006 |
| Tool Magazine | | Bamboo hat |
| Tool magazine capacity | | 16 |
| Tool chinge time(T-T) | s | 7~8 |
| Machine dimension | mm | 2250x2000x2200(moved Zaxis motor ,using 20GP) |
| L*W*H | 2250x2000x2350(using 40HC) |
| Machine weight | Kg | 2600 |
| GSK218 SYSTEM,XY=6NM,Z=15NM,MIAN MOTOR =3.7KW,16Tools magazine-Hat type,Full cover |
Standard configuration:
Taiwan drum-type tool magazine capability 16 tools
Spindle 8000rpm
Automatic intermittent lubrication
box type guideway
GSK
optional accessories:
oil cooler
Fanuc 0i mate md system
SIEMENS 808D
SIEMENS 828D
>>
