Product Description
Product Description

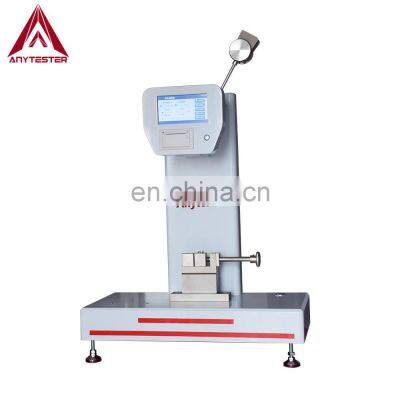

Product DescriptionAT422D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc.StandardASTM D256ISO 180, 20126JB/T 8761GB/T 1843Note: For more standards, please contact us!SpecificationModelAT422DAAT422DBImpact velocity3.5m/sImpact energy2.75J, 5.5J11J, 22JImpact center distance335mmPendulum angle150°Distance between striking edge and top surface of jaw 22.0mm±0.2mmCorner radius of striking edgeR=0.8mm±0.2mmPower supplyAC220V, 50HzDimensions700×350×850mmWeight120kgDetails★ Digital type, PLC touch screen control and display;★ Automatically calculate the test result, with mini-printer to printout test result; ★ Can be connected to PC to edit and print test data, also it can be connected to Notch Depth Measuring Device to transmit the accurate sample size to the machine;★ Automatically correct the energy loss caused by friction and wind resistance, no need to manually calculate and correct; ★ Simple structure, easy to operate;★ Fast to test, accurate and reliable;★ Protective cover optional.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
