Farm Manure Ditch Cleaning Machine, Manure Scraper

Product Description

Product Description
The manure scraper is more suitable for being placed in the manure ditch of beef cattle farms and pig farms.
Because these farms do not have wastewater that can be used to flush the manure ditch.

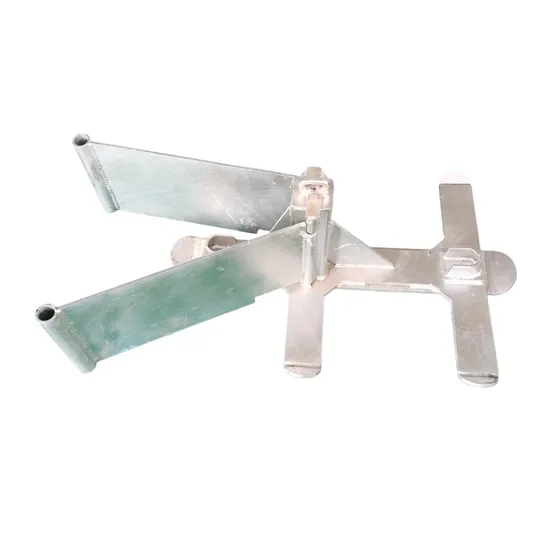

The appearance of the manure scraper is V-shaped. When the manure scraper moves forward, the V-shaped scraper structure can fully fit the bottom and side walls of the manure ditch. The scraper part at the bottom scrapes up and pushes the manure settled at the bottom of the manure ditch, and the scraper parts on both sides gather the manure attached to the side walls of the manure ditch together. Using the gathering characteristics of the V shape, the manure is gradually gathered in front of the scraper. As the scraper continues to move, the manure is cleaned out of the manure ditch.
Sketch Map
Product Parameters

Product Composition--Drive Unit	Component Parameter	Enterprise standard
	Number of bottom plate anchor bolts	≥28
	Anti corrosion	Overall hot-dip galvanized
	Bottom plate thickness	≥10
	Lifting system	worm and gear
	Lubrication method for worm and umbrella gear	Lubricate by grease
	Drive unit support plate	≥20mm
	Max chain tighten distance	80cm
	Max manure clearance distance	240m
	Self lubrication measures for steering wheels	graphite
	Copper sleeve	tin bronze
	Reducer power	2.2Kw
	Motor brand	Siemens

Product Composition--scraper	Component Parameter	Enterprise standard
	Scraper galvanized crossbeam	100*100*5
	Thickness of wear-resistant steel scraper	10mm ,eccentric
	Dismantling wear-resistant feet	60Si2Mn
	Bridge type guide rod	1.2m,wear-resistant steel
	Wear resistant rubber	9MPa,thickness: 20
	Permanent magnet	20000 magnetic force
	Wear resistant steel auxiliary hanging plate	10mm ,prevent hanging the cow tail
	Manure passage width	>3m

Product Composition--steering wheel	Component Parameter	Enterprise standard
	10mm thick steering wheel case	bottom plate: wear-resistant steel
	10mm case corner rib plate	>10pcs,full welding
	T-shaped large steering wheel	45#steel, specially treated
	T-shaped small steering wheel	45#steel, specially treated
	30 STEEL SHAFT	45 # steel, modulated
	shaft sleeve	Copper/bearing steel, containing graphite
	Flat copper plate	Aluminum bronze, containing graphite

Product composition - Control Unit	Parameters and functions	Enterprise standard
	sealing form	Layered isolation,fully sealed, dustproof and waterproof
	Heat dissipation method	No fan, heat dissipation by fins
	Anti interference measures	Integrated design, optocoupler isolation
	Applicable temperature	-30ºC~60ºC,0630 element
	Remote data transmission	4G/5G transmission
	Mobile phone monitor	Expandable WeChat Mini Program

Detailed Photos
FAQ
Q1. Are you a factory or trading company?A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.

---
