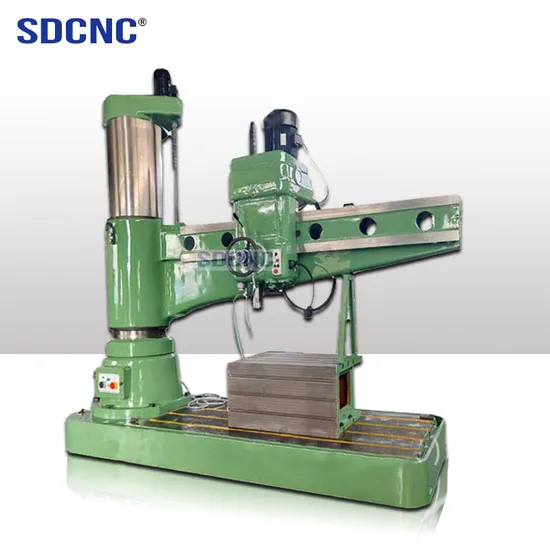

High Precision Deep Hole Drill Machine Radial Drilling Machine Price Horizontal Directional Drilling Machine Z30125

Product Description

SPECIFICATIONS

specifications	Z30100x31	Z30125x40
Max. drilling diameter(mm)	100	125
Distance between spindle axis and column surface(mm)	570-3150	600-4000
Distance form spindle nose to table surface(mm)	750-2500	750-2500
Spindle travel(mm)	500	560
Spindle taper	NO.6	Metric 80
Spindle speeds range(r/min)	8-1000	6.3-800
Spindle speed step	22	22
Spindle feeding range(r/min)	0.06-3.2	0.06-3.2
Spindle feeding step	16	16
Table size(mm)	1250X800X630	1250X800X630
Headstock level migration distance(mm)	2580	2400
Max. torque spindle(mm)	2450	3146
Spindle motor power(kw)	15	18.5
Racking shaft heave height(mm)	1250	1250
N.W./G.W.	20000kg	28500
Overall dimensions(L*W*H)	4660×1630×4525mm	4960×2000×4780mm

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tools.

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.

---
