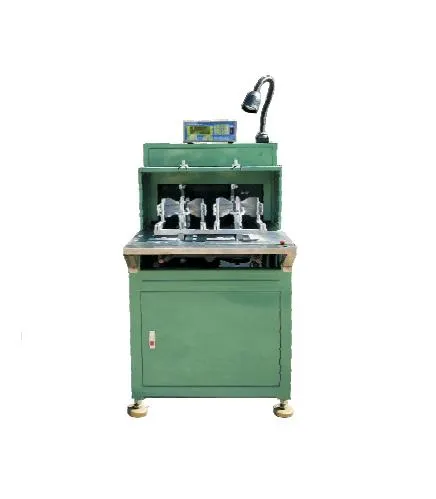

Insulation Paper Insulation Sheet Automatic Insertion Machine (ceiling fan)

Product Description

1.Product Description NAME: (GW-PI20) Insulation paper insulation sheet automatic insertion machine

Model	GW-PI20
Stator slots	8-36slots
Inserting speed	0.5-1.0s/slot
Stator OD	40-200MM
Stator height	10-40mm
Folding wideth	2-3.2mm
Machine size	900×900×1000mm
Weight	350kg

Features:
1. Microcomputer CNC control, easy data setting, stable and reliable performance.
2. The flying fork is controlled by a three-phase motor and frequency converter, which is high-speed and reliable. The indexing is controlled by a high-power driver and a stepping motor, and the indexing is accurate.
3.Fan Winding Machine use two spindle synchronous design, selection of high-power phase motor, making a thick wire around the low-speed torque when larger and more stable. Coupled with high-power stepper motor ,when it rotates will get higher accuracy, so that customers to feel save time,save worker,high production.
4.Stator Winding Machine suitable for all kinds of motor stator winding, a variety of ceiling fan stator, pole number stator, locomotives generators.
APPLICATION:
Ceiling fan motor stator insulation paper, insulation sheet insertion work. Automatic feeding, cutting, forming, inserting. In addition to the need to use the automatic inserting machine for insulating paper, it also needs to be used with the automatic inserting machine for insulating sheets.
2.Other related machine: (GW-P20) Insulation paper insulation sheet automatic insertion machine (ceiling fan)

Model	GW-P20
Stator slots	8-36slots
Inserting speed	0.5-1.0s/slot
Stator OD	Max 190 MM
Stator ID	30-120mm
Stator height	8-200mmmm
Folding wideth	2-3.2mm
Machine size	900×900×1000mm(LXWXH)
Weight	350kg

Features:
The insulating paper is automatically inserted from the bottom of the stator slot.
Automatic paper feeding, cutting, hemming, forming.
Low noise, fast speed, good molding, good performance and so on. It only takes 0.5S to complete each slot.
The production of stators of different sizes only needs to replace the mold, which is convenient and fast.
Function:
This machine is suitable for inserting insulating paper into the stator of small and medium motors. Except for the stator loading and unloading, the rest of the steps are automatically completed by the machine. Stators of different sizes only need to replace the mold, which is easy to operate and has stable performance.
Scope of application:
Washing machine motor, air conditioner motor, water pump motor, compressor motor, fan motor, etc.

PRE-SALE:
The customer service department of Grewin Group consists of specialist engineers are experienced in all aspects of coil winding technology ,who can answer and provide innovative solutions to difficult coil winding problems in the fastest time.We can quote price within 1 day.

IN SALE:
For us, We can delivery machines in maximum 10 days.
Sales are not selling products, and then go away. Our aim is to serve our customers wholeheartedly. To this end, we offer our clients free advice.In the communication with customers, we not only have an in-depth understanding of the actual needs of our customers, but also provide professional advices, including the choice of accessories types and machines'consumable parts etc.

AFTER-SALE:
We provide remote services to our customers through video instruction and by phone during 24 hours, allowing clients to purchase products without any worries.We can provide 1 Year warranty and provide you free mainframe.

Compared to other machine manufacturers, our machines' magazine material is the best and excellent performance life.Our Grewin Group has 28 years history and very stable longer service.
Certification
Product packing:
Packaging & Shipping
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)

Company introduction information: GREWIN INDUSTRIAL GROUP CO.,LTD is a leading manufacturer of toroidal coll winding equipment. The program includes machines for winding toroidal power transformers, current transformers El coil, inductors and variable voltage transfomers, as well as toroidal taping machines, toroidal winding transformer tester.

Always alming towards improving quality and performance a highly qualified research and design team and the most advanced manufacturing equipment secure a long life and dependability of all GREWIN products, Many features of the equipment are covered by Chinese and foreign patents. contributing to its reputation for the highest productivity in today's tough work environment.


Top quality is assured according to the IEC ISO 9001 standard system, Products are subjected to a strict testing program before they are released to customers, and we offer an extensive warranty and after sales service including easy access to replacement parts; directly or through our network of distributors. Excellent service has helped make our products known all over Southeast Asia and Europe and boosted sales in many other markets.
GREWIN INDUSTRIAL GROUP CO.,LTD
Add:The Fouth Floor A-A3 Zone Aviation Business Area,DongLi Distrct,Tianjin China

---
