200t Rubber Products Making Machine Equipment with CE Approved

Product Description

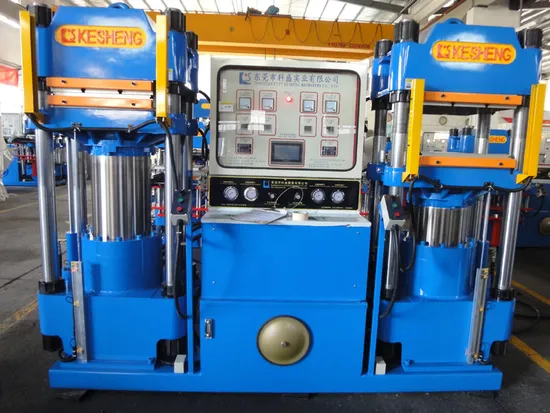

200T rubber silicone products making equipment, with hot compress function, vulcanizing, double working station rubber and silicone molding machine, 2 layer open mould style, high precision, full automatic, fast speed hydraulic machine.
Machine main feature:
1. With proofread slow speed of mold function, proofread mold more accurate, more secure
2. Suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously
4. With adjustable slow speed of mold features to suit different types of modules
5. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage

Applicable products:
Applied to industrial rubber parts, Auto parts, medical bottle stoppers, household ware, cookware, silicone/rubber multi-layer molded products
Parameter:

Model	100Ton	150Ton	200Ton	250Ton	300Ton	350Ton	400Ton	450Ton
Clamping force(Ton)	100	150	200	250	300	350	400	450
Stroke(mm)	250	250	250	250	300	300	300	300
Heating plate size(mm)	400x400	450x460	560x560	600x650	650x650	750x700	850x850	1000x1000
Main cylinder diameter(mm)	250	300	355	400	450	475	500	560
Horse power(HP)	5x2	5x2	10x2	10x2	10x2	15x2	15x2	15x2
Electrical power(KW)	12	17	22	34	34	43	48	72
Gross weight(KG)	4500	5500	7000	9000	11000	15000	17500	21500
Machine size(L*W*H mm)	2360x1650x1850	2650x2000x2000	2930x2350x2100	3200x2700x2500	3460x2630x2500	3650x2600x2610	3750x2700x2800	4200x3300x3300

Dongguan City Kesheng machinery Co., Ltd
Rubber machine, silicone material molding machine, injection machine, rubber machinery manufacturers / suppliers in China, providing high-precision rubber injection molding machine, rubber & silicone pressing machine, full automatic high speed molding press and so on.
Machine core parts:
Adopt foreign imported, such as Japan Mitsubishi PLC control system, Germany's Siemens control system, Taiwan PanelMaster HMI, Japan YUKEN oil pump, Taiwan heating pipes, Taiwan Victoria solenoid valves, Denmark TRAFAG pressure sensors, Japan NOK oil seal, Taiwan Tatung motors, Omron thermostat, Germany Busch vacuum pump, Fujitsu and other international brands accessories, stable quality, superior performance, low failure rate.
Main parts instruction for plate & vacuum rubber machine

NO.	Item	Branch/Material	Remarks
1	Motor	Taiwan Tatung	Large torque type, quiet and silent
2	Oil Pump	Japan branch	Collective style circuit design
3	PLC	Japan Mitsubishi	Independent written, easy to operate
4	LCD touch screen	Taiwan PanelMaster	Clear and intuitive, convenient, easy to operate
5	Heating pipes	Taiwan branch	Nickel-chromium alloy wire, never rust
6	Oil seal	Japan NOK	Wear-resistant, durable, no leakage
7	Solenoid valve	Taiwan Victoria	Controlled fast, long life
8	Other electrical configuration	Japan Fujitsu, Great Wall, Chint and so on	Performance and stability
9	Thermostat	Omron	Using PID correction, temperature uniform distribution, the error value at ± 3 ºC
10	Pressure sensor	Denmark TRAFAG	Conduction pressure accurate, unbiased, and easy to use
11	Heating control system	Taiwan Solid State Relays	temperature uniform distribution, the error value at ± 3 ºC
12	Machine body casting	FCD50 Ductile Iron	Aging passivation, high tensile strength
13	Column	Carbon Steel	Hardness up to HRC55--58
14	Work plate	Size as per quotation	45 # high carbon steel, grinding, surface nitriding hardness HRC50-55
15	Machine Middle body	Umbrella tapered design	Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles
16	Vacuum Pump	Germany Busch	Evacuated quickly, can reach 760 mm Hg within 5 seconds

Dongguan City Kesheng machinery Co., Ltd is located in Dongguan city, Guangdong, China, covers an area of 28000 square meters. Our company was established since 2003 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
Any inquiry please feel free to contact with us, thank you for your attantion.

---
