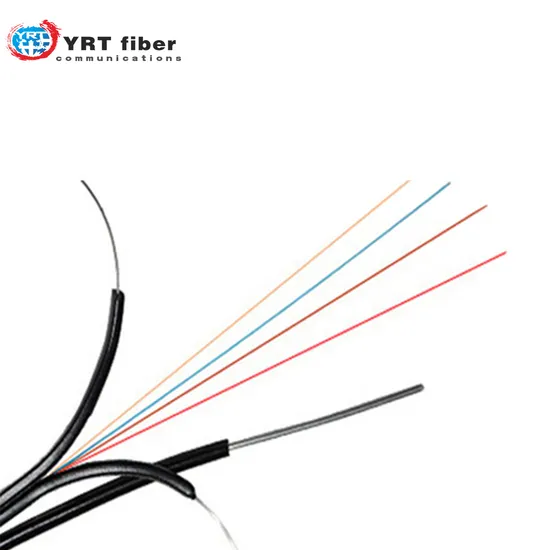

Bow Type FTTH Drop Fiber Self-Supported Optic Cable Gjyxch

Product Description

Product Description
Characterstic
•Low insertion loss, high return loss.
•Excellent mechanical endurance.
•High credibility and stability.
•Good in repeatability and exchangeability.
•100% Insertion, Return Lossz End Face and Interference inspection.
Feature
•Can be installed without shutting off the power
•Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props
•Large span length and the largest span is over 1000m
•Good performance of tensile strength and temperature
•Long span life, over 30 years Specification

Parameters	Specifications
Fiber Core	1	2	4
Cable Dimension (mm)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)
Cable Weight (kg/km)	20	20.5	22
Tensile Strength (N) Long term	300
Tensile Strength (N) Short term	600
Crush(N/100mm) Long term	2200
Crush(N/100mm) Short term	1000
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20ºC)@1310nm	≤0.45 dB/km
Attenuation(+20ºC)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20ºC~+60ºC
Installation Temperature	-5ºC~+50ºC
Out sheath/Jacket	LSZH or PVC

Application Duct Aerial Diret Buried
Our Advantages
About YRTFIBER:
As one of the professional manufacturers of fiber optic products, YRTfiber focus on producing differenttypes indoor and outdoor fiber optic cable, fiber optic patch cords, FTTH drop cable, fiber optic conne-ctors, PLC splitter and other passive fiber optic accessories! The factory located in Oingfeng county,Puyang city, Henan Province, and company has branch office in Building 390,World Center, Wuhan city,Hubei Province,to provide customers better service.We have been putting a lot of investments to keep pace with industry standards. With high-quality rawmaterials, advanced manufacturing equipment, and highly skilled workers, we ensure every piece of ourproducts is of excellent quality, good packing and fast lead time, Our factory management and production complies ISO9001/ISO14001/0HSAS18001 and SGS certifications.if there is any items interest you, please do not hesitate to contact us for more detailed informationwe will be highly appreciated to hear from you, Looking forward to cooperating with clients all over the world.
Our Factory

Packing
Certifications
Our Exhibition
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
2 years
5.Which kind of certification you have ?
ISO9001, SGS, CCC, RoHs,CE
6.What is your delivery time?
Usually within 7-20 working days
7.How do you ship the cables?
Cables will be shipped by Sea, Air, DHL, Fedex, EMS etc.
8.What is your payment way?
We accept T/T, Western Union, D/P etc.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

---
