Automatic Paper Gathering Sorting Collator Machine Newspaper Calendar Collating Machine

Product Description

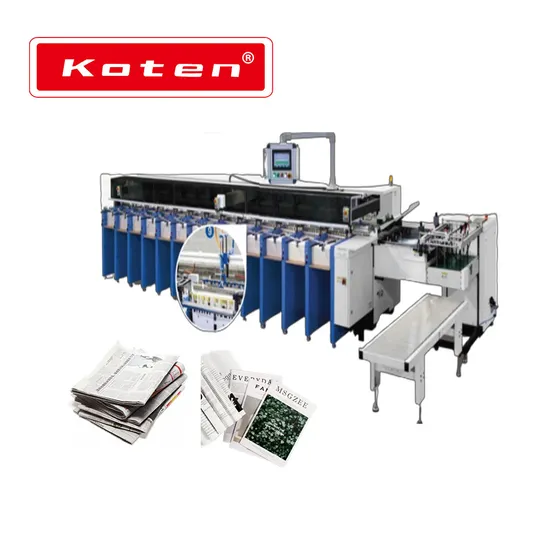

Horizontal Automatic Gathering Machine PY80
1.Application: Cardboard, books, calendars, PVC film ETC. 2.Inspection: Lackpage auto feeding,multipage auto removing. 3.Multifunction:Connected with the book collection, stitching, folding, and trimming machines. 4.Warning: Each station is equipped with alerting system. 5.Station Control: Each station independently controlled,any station can work separated. Advantage 1.Control system adopt global brands(PLC,Intelligent sensor,Electronic control unit ,etc.) 2.The machine can work for the single paper or the folded paper, even mixed the thin and thick paper. 3.Machine frame adopt strong and high precision steel; Spare parts are made of high quality materials; Standard parts are all international brands, with quality guarantee and good exchange ability. 4.The program is simple and easy to operate;The control system is perfect and stable ,excellent editing and extensibility.

13 Stations Gathering Machine

Max. Paper Size	480*320mm (Supporting customization)
Min. Paper Size	100mm*120mm
Paper Thickness Range	40-1000 gsm
Working Stastion	8,13,15,16 (Supporting customization)
Max.Paper Stacking Height	600mm
Max. Speed	2800pcs/h
Weight	3600kgs
Power	6.8KW
Machine Dimensions	7100*1550*1920mm
Feeding System	Flat Feeding
Feeder nunmber	13
Materials	Offset paper, carbon free paper, Coated paper,etc.

Stitching,Floding and Front Cutting Machine

Max. Paper Size	480*320mm
Min. Paper Size	120*120mm
Finished Product Size	120* 60mm--220*300mm
Paper Thickness Range	40-350gsm
Max. Stitching Speed	5000 pcs/hour
Folding Way	Single knife
Range of Trimming	1-5mm
Stitching Heads Quantity	2pcs
Weight	100kgs
Power	1KW
Machine Dimensions	1450*3400*1550mm
Feeding System	Flat Feeding

Collecting Machine

Max./Min. Product(mm)	480*320 / 100*120
Max.Paper Stacking Height	400mm
Paper Thickness Range	0.1mm-30mm
Feeding System	Flat feeding and split the book left and right
Alarm System	Paper jam problem ( indicate fault location)
Collecting system	Automatic transfer
Power	0.8KW
Weight	100kgs
Machine Dimensions	1300*600*1050mm

Gathering Machine

Name	Brands	Quantity
Touch Screen	Zmotion(China)	1
Servo Motor	LEAD-motion(Germany)	4
AC Motor	JSCC(Taiwan China)	13
Induction Block	SICK (Germany)	3
Induction Block	Biduk(China)	13
Encoder	OMRON(Japan)	1
Blower	Sensen (China)	4
Vacuum Pump	BECKER(Germany)	1
Solenoid Valve	AIRTAC(Taiwan China)	28
PLC	Zmotiom(China)	1

Stitching,Floding and Front Cutting Machine

Name	Brands	Quantity
Inverter	Schneider (France)	2
Stepper Driver	Schneider (France)	3
Power Supply	MeanWell(Taiwan China)	1
PLC	Schneider (France)	1
Air Cylinder	AIRTAC(Taiwan China)	2
Relay	IDEC (Japan)	16

Collecting Machine

Name	Brands	Quantity
Touch Screen	Tongtai (China)	1
Induction Block	Omron (Japan)	2
Servo Motor	Reiter (China)	1
Air Cylinder	AIRTAC(Taiwan China)	2
PLC	Junchuang (China)	1
