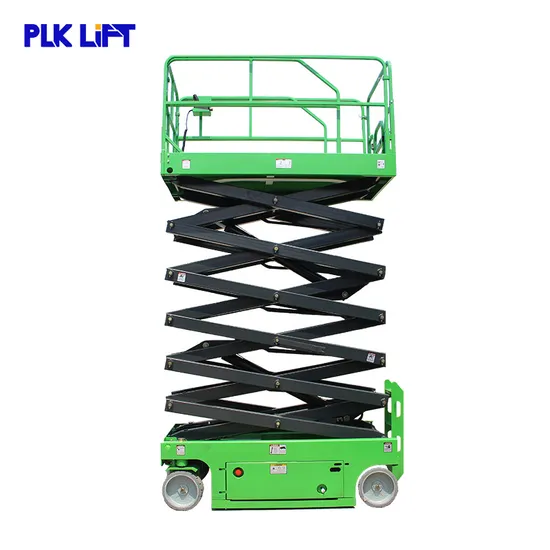

3~14m Hydraulic Electric Scissor Lift with CE

Product Description

Hydraulic Electric Man Lift Aerial Work Platform
Aerial Lift Platform equip high configuration with America TORJAN Battery, Americia CUITIS control system, Sweden bucher pump station, Italy doyle hydraulic valve and America white driving wheel. It is powered by DC, can be controlled by manually and move automatically and the moving speed is adjustable.
There is many safety precautions, for example, explosion-proof valves, spillover valve and emergency decline valve etc...

Model No.	GTJZ06	GTJZ08	GTJZ10	GTJZ12
Lifting Height (mm)	6000	8000	10000	12000
Lifting capacity	300	300	300	300
Max. Height-guardrail unfolding (mm)	2150	2275	2400	2525
Max. Height-guardrail removed (mm)	1190	1315	1440	1565
Overall Length (mm)	2400
Overall Width (mm)	1150
Platform Size (mm)	2270×1150
Platform extend size (mm)	900
Min. Ground clearance-folding (mm)	110
Min. Ground clearance-rising (mm)	20
Wheelbase (mm)	1850
Min. Turn radius-inner wheel (mm)	0
Min. Turn radius-outer wheel (mm)	2100
Power source (V/km)	24/3.0
Running speed-folding (km/h)	4
Running speed-rising (km/h)	0.8
Rising/falling speed (sec)	40/50		70/80
Battery (V/AH)	4×6/210
Charger (V/A)	24/25
Max. Climbing ability (%)	20
Max. Working allowable angle	2-3°
Way of control	Electro-hydraulic proportion control
Driver	Double front-wheel
Hydraulic drive	Double rear-wheel
Wheel size-stuffed&no mark	Φ381×127	Φ381×127	Φ381×127	Φ381×127
Whole weight (kg)	1900	2080	2490	2760

Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
Details Show
Factory Show
Jinan PLK Machinery Co., Ltd located in Jinan City, Shandong Province, was established in 2003. In passed years, Jinan PLK has developed into a professional manufacturer of aerial working platform, lifting machine and material lift. PLK Machinery is committed to providing customers with best quality products and the professional services. Every year, we invest a lot of money in product renewal. High quality products and professional services make us a leader in the industry.
Contact Information:
Sarah (Sales manager)
Jinan PLK Machinery Co., Ltd
Add: No. 6, Huixin Road, Jiyang County, Shandong, China

URL: plklift.en.made-in-china.com
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.

---
