Designed for Low Energy Losses Efficient Oil Type Transformer

Product Description

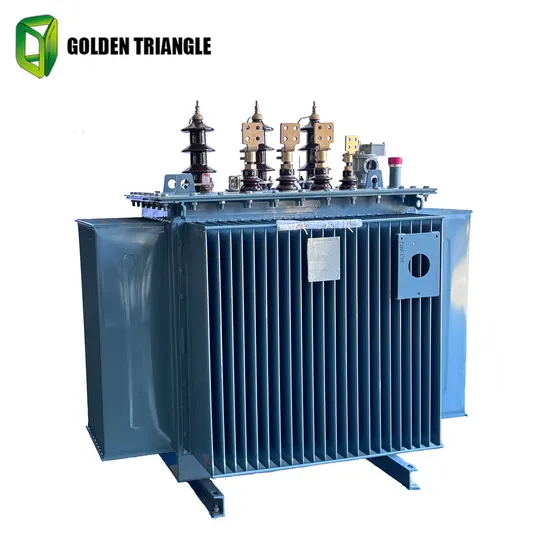

Product Description S11-M(30-2500)/10 Three-Phase Oil-Immersed Distribution Transformer

Rated capacity(kVA)	High voltage(kV)	Tap range	Low voltage(kV)	connected group label	No-load loss(w)	Load loss (75ºC)(W)	No-load current(%)
30	6 6.3 6.6 10 10.5 11	±2*2.5 ±5	0.4	Dyn11 Yyn0 Yzn11	80	630/600	1.5
50					100	910/870	1.3
63					110	1090/1040	1.2
80					130	1310/1250	1.2
100					150	1580/1500	1.1
125					170	1890/1800	1.1
160					200	2310/2200	1.0
200					240	2730/2600	1.0
250					290	3200/3050	0.9
315					340	3830/3650	0.9
400					410	4520/4300	0.8
500					480	5410/5150	0.8
630				Dyn11 Yyn0	570	6200	0.6
800					700	7500	0.6
1000					830	10300	0.6
1250					970	12000	0.5
1600					1170	14500	0.5
2000					1550	18300	0.4
2500					1830	21200	0.4

IMPORTANT NOTICE!
Kindly provide the following information prior to placing your order. This crucial information includes:
1. Type of Prefabricated Substation;
2. Transformer Model and Capacity Specifications;
3. Primary and Secondary Circuit Main Wiring Scheme;
4. Specifications and Parameters of Electrical Components with Special Requirements;
5. Desired Shell Color;
6. Names, Quantities, and Any Additional Requirements for Spare Parts and Accessories;Company Profile
ABOUT OUR COMPANY
Golden Triangle Power Technology Co., Ltd. (stock name: Golden Triangle, stock code: 837424) was established in November 2009. We specialize in the research, development, production, sales, and technical services of premium power products. Our diverse product range includes three-dimensional coil core transformers, amorphous alloy core transformers, amorphous three-dimensional coil core transformers, photovoltaic substations, energy storage equipment, high and low voltage switchgear, and outdoor box substations for different regions. As a production and service-oriented enterprise, we also excel in EPC construction projects. Our products serve crucial sectors such as State Grid, Southern Power Grid, railways, mines, infrastructure, metallurgy, roads and bridges, and real estate management systems.
Golden Triangle has earned several prestigious certifications, including ISO9001:2015 (quality management), ISO14001:2015 (environmental management), ISO45001:2008 (occupational health and safety), PCCC energy-saving product certification, the national mandatory product 'CCC' certification, CQC China quality certification, and an AAA credit rating. We're recognized as a national high-tech enterprise and a top 100 provincial scientific and technological enterprise with growth potential. We also hold the municipal green factory title and operate academician and doctor innovation workstations. The company boasts 3 invention patents and 51 utility model patents, underscoring our commitment to innovation and quality.
Golden Triangle's products are featured in the 'Energy Saving and People Benefiting Project' and the 'Recommended Catalog of Energy Saving Electromechanical Equipment' by the Ministry of Industry and Information Technology, Ministry of Finance, and National Development and Reform Commission. We are the first power industry enterprise in Wenzhou to receive direct subsidies from the Ministry of Finance for product sales. Our products have been honored as national industrial energy-saving technical equipment products and the first set of products in provincial equipment manufacturing key fields. Our main products, 'SCB13-RL solid triangle ironcore dry-type transformer' and 'SBH16-RL solid triangle rolled iron core amorphous transformer,' set the 'Zhejiang manufacturing quality standard.' We spearheaded the drafting of 10 standards, including 'GB/T32825-2016' and 'NB/T 10483-2020,' making significant contributions to China's energy conservation, emission reduction, and green energy technology advancement.
THE HONOR OF COMPANYIn an era of fierce market competition and rapid technological change, Golden Triangle remains steadfast in our commitment to quality. Adhering to the philosophy that 'quality is the enterprise's life,' we fully implement the ISO9001:2000 international quality management system. This ensures our unwavering dedication to 'quality excellence, service perfection, product integrity, and continuous quality improvement.' As a result, we guarantee customer satisfaction. Our company was proudly included in the 'energy-saving and Huimin engineering energy-efficient distribution transformer' project by the National Development and Reform Commission, Ministry of Finance, and Ministry of Industry and Information.
SEVERAL PICTURES ABOUT COMPANY AND PRODUCTION FAQ

---
