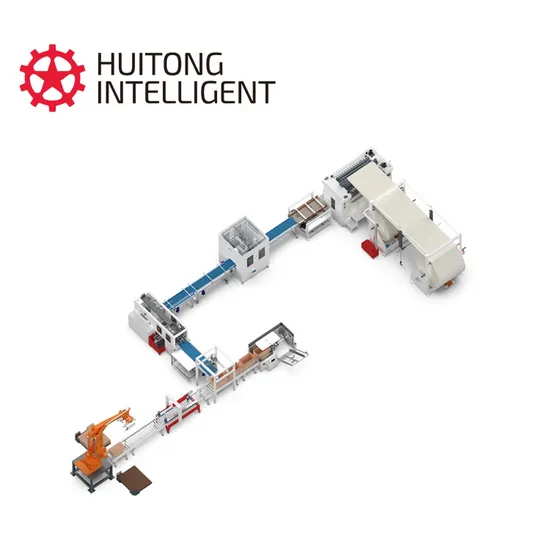

Automatic Soft Towel Production Line

US$25,000.00-120,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HT-PR01A
Condition
New
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Tissue Packaging
Bag
Function
Folding
Tissue Type
Wet Tissue
Driving System
Timing Belt
Power
7.5kw Main Motor
Weight
12-13ton
Air Pressure
24V
Transport Package
Wooden Cases
Specification
6570*3720*1525mm
Trademark
HUITONG
Origin
China
HS Code
8422400000
Production Capacity
100 PCS Per Min

Product Description

Automatic soft towel producyion line Product Description ENHANCED PRODUCT DESCRIPTION:
Application: Soft tissue, box tissue, cream tissue.Features: Intelligent, systematic, exquisite and efficient.Value: With high running efficiency, low costs and good overall appearance, it can promote trustof customers. The uniform spare parts and strong compatibility can reduce inventory costsRelying on One Paper for maintenance can reduce communication costs. The cooperativework stations help to promote production efficiency. The remote lnternet of Things can achievebrowsing of data according to the authority, mastering of production trends, etc. throughmobile APPs.
Explanation: The production line can design the best solution based on the customer's workshop site conditions, production capacity, and product requirements.
Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
1. One Set of Highly Efficient Facial Tissue Folding Machine
2. One Set of Precision Facial Tissue Cutting Machine
3. One Set of Advanced Facial Tissue Packing Machine
4. One Set of Bundling Packing Machine for Ultimate Efficiency
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products. Sophisticated Functions The maximum operational speed of the Fully Automated Facial Tissue Folding Machine, achieving an impressive rate of 100-130 m/min ♦ Intuitive operation and minimal maintenance, maximizing space efficiency with only one operator needed to transfer tissue logs post-operation ♦ Leverage our automatic cutting machine to dramatically boost production efficiency and ensure pristine tissues, free from human contamination ♦ Automatic shutdown feature when paper breaks, conserving resources by preventing undue waste Remarkable Features: 1. Seamless automatic counting and output for streamlined processing;
2. Versatile equipment offering 6-10 lines of varied models, providing customers with a broad range of choices. 3. Our 6-line facial tissue folding machine is perfectly aligned with current market demands, outperforming 2-4 line alternatives. 4. An independent valve control system for the knife groove ensures optimal adsorption and precise side-by-side folding. 5. State-of-the-art operation system featuring imported PLC and frequency conversion speed regulation for superior control.
Vivid Sample Picture:
Comprehensive Machine Information:
Key Technical Parameters:
1. Cutting-edge Tissues Fold Machine
Machine model HT-PR02
Finished products unfolded size 180*210mm±2mm
Folding products size 90*(120-210)±2mm
Raw material width 400-2800mm
Raw material diameter 1100mm
Raw material core diameter 76.2mm
Out put (8 hours) 8000~10000Kg
Embossing unit Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation
Power 7.5KW Main motor
3.0KW(2set) Unwind motor
Vacuum suction unit 47KW Fan
Pneumatic system 3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system Timing belt
Dimension 8700X3500X7000mm
Weight 12~13T

2. Advanced Facial Tissue Auto Log Separator integrated into the machine
No. Item Technical parameter
1 Sub-stack function Adopts 4sets servo controlling, can achieve automatic separating
2 Sub-stack structure Wall panel frame type
3 Sub-stack slide All sub-stack slides adopt imported linear bearings, and adopt double-shaft structure to ensure the stability of each sub-stack part
4 Main sub-stack parts All parts are aluminum alloy and processed by CNC machining center to ensure the accuracy of sub-stacking
5 Paper output baffle All are processed by imported aluminum alloy to ensure the result of paper output
6 Sub-stack pneumatic part Adopts AIRTAC pneumatic parts to ensure the accuracy of sub-stacking
7 Paper pieces tracking Using high-precision encoder
8 Sub-stacking draws adjusting Set on touch screen, can 100% accuratly adjust the draws(set based on even draws)
9 Set draws range 2layers, 100-200draws; three layers, 60-150draws
10 Sub-stacking times Max sub-stacking 10times/min
11 Controlling method when machine common stop, it must finish the whole stack then can stop machine
13 Paper support part Stainless steel is used to ensure the strength and rigidity of supporting semi-finished products at high speed
14 Sub-stacking servo motor power 8.5KW
15 Compressed air pressure ≥0.6MPa
16 Gas consumption 1000L/shift
17 Air pressure 24V
Detailed Photos Captivating Machine Picture:
Company Profile Insightful Factory Information:
Machinery Process diagram:
Exchange of foreign friends:
CERTIFICATE:
