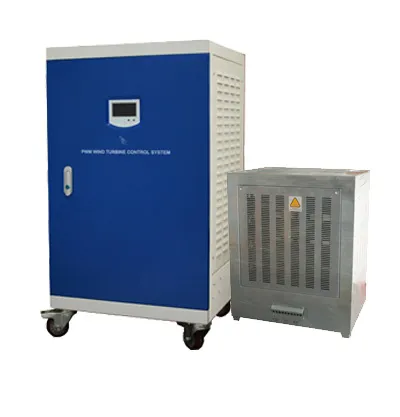

Wind Turbine 50kw-480VDC Battery Charge Controller with Unloader

Product Description

Product Description 1,The big screen LCD display. Clearly present the working status of the wind turbine, solar panel, battery and controller.(Wind turbine voltage, current, power display ;solar voltage, current, power display, battery charging current, voltage, charging power, power display.)
2,Two sets of control systems:PWM constant voltage system and three-phase dump load system.
3,PWM constant voltage control is 120% of the rated power of the wind turbine . In case exceeding of PWM's capacity, the three-phase dump load will automatically start immediately to ensure safe running of the overall wind turbine system.
4,Under the circumstances of disconnecting or damage of the battery, the three-phase dump load will start automatically to avoid the idling for wind turbine and the occurrence of runaway accident.
5,Under the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.
6,The protection function of reverse connection, disconnection and damage-resisting of the battery will be applied.
7,Over-charging protection of the battery: When the battery is full (the battery voltage getting 125% of the rated voltage), the controller will carry out three-phase dump load automatically to stop charging the battery.
8,Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage, it stops three-phase dump load to recharge battery automatically.
9,For the different wind turbine type, the controller can be equipped with mechanical yawing, furled empennage, mechanical or hydraulic, pneumatic, electric magnetic and other brake functions.
10,The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.
11,Ammeter and voltmeter indication: Indicate the charging current and voltage of the battery.
12,The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.
13, Optional communication Mode:RS232,RS485,GPRS,USB,RJ45 ect, Can monitor multiple devices running.
Product Parameters Technical Parameters China Factory Wind turbine Battery charge Controller 50KW-480VDC with unloader

Type	50KW-480Vdc
Wind turbine rated power	50KW
Wind turbine max. power	80KW
Battery	480Vdc
Function	Rectifier,charge, control
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, battery voltage, charge current
PWM constant pressure voltage	>580Vdc
3-phase load 1 voltage of the wind turbine	590±5Vdc
3-phase load 2 voltage of the wind turbine	595±5Vdc
3-phase load 3 voltage of the wind turbine	600±5Vdc
Recovery charging voltage of the wind turbine	550±5Vdc
Low-voltage of the battery	400±5Vdc
Self-provided connecting wire of the battery	>20mm²
Self-provided connecting wire of the 3-phase dump load	>6mm²
PWM fuse	63A
Charging fuse	125A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling
*Communication interface (optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation (optional)	-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C
Size of the controller	560*460*950 mm
Weight of the controller	60Kg
Size of the load	810*590*1405 mm
Weight of the load	140 Kg

*Above parameter only for reference
1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.
