Product Details
Product Description
Product Description
Features:

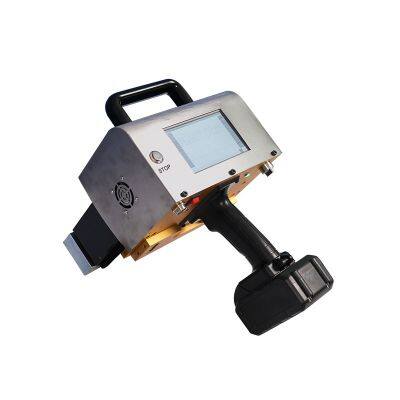

1. The entire handheld electrical marking machine adopts imported industrial grade components, with high marking accuracy and long service life.
2. 7 inch LCD operation, no computer required, stable communication, simple and easy to use.
3. The handheld electrical marking machine has the feature of maintenance free, saving time and improving work efficiency.
4. Automatically prompt for file saving, can be connected to the external bar code machine to print bar codes.
5. With data retrieval function, it can archive what you print every day and Previously printed data can be retrieved at any time.
6. Lithium battery power supply is not limited by space and can work continuously for more than 24 hours.
Technical Data:
Product Name
| LCD Control Handheld Portable Dot Peen Marking Machine
|
Model No.
| PEQD-260
|
Machine Type
| LCD Control+handheld Marking
|
Marking Area
| 90mm*30mm
|
Marking Accuracy
| 0.01mm
|
Repeat Marking accuracy
| ＜0.05mm
|
Marking Depth
| 0.01~1mm(depends on material hardness)
|
Marking Speed
| 5-120 characters/min
|
Pin Hardness
| HRC 92
|
Power Supply
| 220v
|
Lithium battery
| Have
|
Marking content
| Various characters, flowing water numbers, VIN code and graphics
|
Support bar code
| Can be connected to a bar code machine to print bar codes
|
material Hardness
| HRC≤60
|
Printed direction
| 360 -degree adjustment
|
Input
| Handmade and automatic flowing water increasing (the incremental number can be set)
|
Power
| ≤360W
|
temperature
| -10～45℃
|
Text positioning
| Provide mouse drag and coordinate input
|
Printing needle durability
| >100,000 characters / needles , can be ground
|
>>
