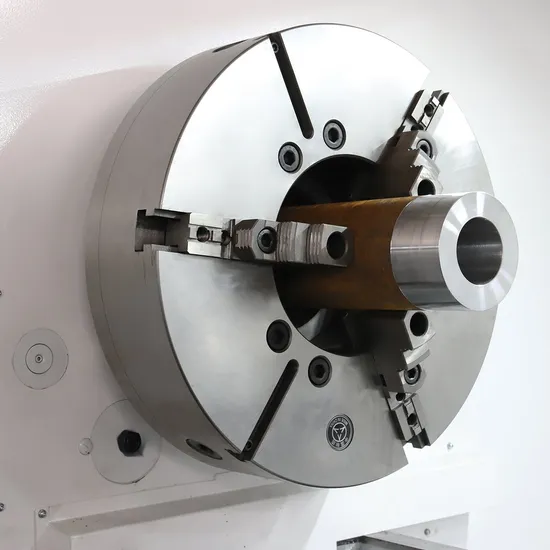

ISO 9001 Approved Kd CNC Pipe Thread Lathe

US$3,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CKG-200
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
210mm
Outer Dia.of Turning Pipe
50-200mm
Max Swing Over Bed
900mm
Width of Bed
560mm
Tool Post
4 Way ,6 Way Is Optional
Main Motor
18.5kw
Steps of Spindle
4 Steps
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
180 Sets/ Year

Product Description




ITEMS		 CKG200

Max. swing over bed		 Ø 900mm

Max. swing over carriage		 Ø 560mm

Width of bed 		560mm

Maximum turned length 		2000/3000mm

Max. turning length 		1800/2800mm

Spindle nose		 Ø 50- Ø 200 mm

Spindle bore		 A2-15

Cone hole diameter and taper of spindle hole		 Ø 210mm

Steps of spindle speed(Manual)		 4(VariableWithin Each Step)

Range of spindle speed		 10~60 20~115 35~205 65~380 rpm

Rapid feed for Axis X		 5m /min

Rapid feed for Axis Z		 10m /min

Max. travel of Axis X		 500mm

Max. travel of Axis Z		 1850/2850mm

Min. input		 0.001mm

Tool post stations		 4 station

Tool cross section		 40× 40 mm

External diameter		 Ø 100mm

Taper of bore		 MT. No. 6

Max. Traverse		 230mm

Power of main motor		 18.5 KW

Power of cooling pump 		370W

Overall dimensions(L× W× H)		 4560/5560x1918x1860

Net weight		 4100/4600kg
