High Quality PE150X750 Sand Machine

Product Description

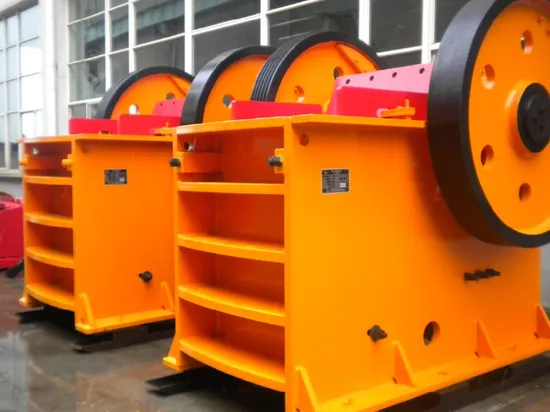

Jaw Crusher
PE/PEX Series Jaw Crusher has the features of high crushing and even product size ratio. It can be used to crush material, whose compression strength is not more than 320Mpa. PE Series is used in primary crushing, while PEX series is used in secondary crushing and fine crushing.
Jaw Crusher Features and Benefits:
Simple structure and reliable operation
Easy maintenance and low operating cost
After-Sale Service:
Erection and Commissioning
Operator Training
Spare Parts Supply
Warranty Terms: More than 12 months
Products Certificate: TUVRheinland CE, ISO9001: 2000

Model	Size of Feed Opening(mm)	Max Feed Size (mm)	DischargeRangeOpening (mm)	Capacity (m3/h )	Motor Power (kw)
PE-250× 400	250× 400	210	20-60	3-13	15
PE-400× 600	400× 600	340	40-100	10-35	30
PE-500× 750	500× 750	425	50-100	25-60	55
PE-600× 900	600× 900	500	65-180	30-85	55- 75
PE-750× 1060	750× 1060	630	80-180	72-150	110
PE-800× 1060	800× 1060	680	100-200	85-143	110
PE-870× 1060	870× 1060	750	170-270	145-235	110
PE-900× 1060	900× 1060	780	200-290	170-250	110
PE-900× 1200	900× 1200	780	95-225	100-240	110
PE-1000× 1200	1000× 1200	850	195-280	190-275	110
PE-1200× 1500	1200× 1500	1020	150-300	250-500	160
PEX-150× 750	150× 750	120	18-48	5-16	15
PEX-250× 750	250× 750	210	25-60	8-22	22
PEX-250× 1000	250× 1000	210	25-60	10-32	30-37
PEX-250× 1200	250× 1200	210	25-60	13-38	37
PEX-300× 1300	300× 1300	250	20-90	10-65	75

---
