Hg Positive Ctcp Printing Plate UV CTP Plate

Product Description

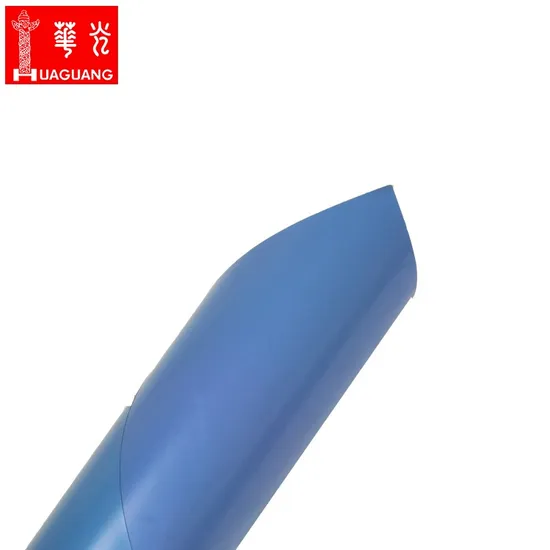

Brief Introduction: Huaguang Offset Printing Plate CTCP UV Plate is a kind of high quality UV-CTP plate , which make the printing enterprise in the production of both economic efficiency at the same time. It is widely used in sheet-fed and web commercial press .

Technical Specifications

Product Type:	Huaguang Offset Printing Plate CTCP UV Plate
Gauge:	0.15/0.20/0.25/0.30/0.40mm
Substrate:	Electronically grained and anodized aluminum substrate
Application:	commercial Sheetfed and rotary press printing
Spectral sensitivity:	350-460mm UV light, especially 400-410mm UV laser
Exposure energy:	30-35mW(Cron UV-4632CI type platesetter , parameters 1000 rpm).
Resolution:	2-98%@250lpi(Platesetters in different resolution will have difference).
Safelights:	yellow light handing
Working conditions:	Operating temperature 21-25 ºC (room temperature), relative humidity 40-60%
Storage condition:	Storage temperature:15-27ºC,relative humidity: 25-60%,shelf life:18 months under recommended storage condition
Run length:	Up to 150,000 impressions without baking. Actual run length will have differences according to press/paper/ink/chemicals conditions

Packing & Delivery
--0.15mm 100 pieces/carton, 70 cartons/pallet
--0.30mm 50 pieces/ carton, 35cartons/pallet

FAQ:

Q: When can I get the price?		A:We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are very urgent.
Q: Can I get samples to test?		A: We can provide 8-12 pcs of Double Coating Thermal CTP Plate samples for free, you only need to bear the freight cost
Q: How long is the production time of the goods?		A: Usually we need two to three weeks after the order confirmed.

Our Company:
Bridgehead Co. LTD was found in year 2013, but we have dealing with this business for over 10 years!
We have three production lines for offset printing plates, and have the production capacity of 50,000,000sqm per year.
For now, we have agents in Europe, Asia, Africa, North America, South America, Mid East, and so on. We welcome you to be our next agents!

---
