Product Details
Product Description
Product Description
Key attributes
Other attributesPlace of Origin
Shandong, China
Warranty Time
1 year
Model Number
X7
Rotating speed of roller brush
600 rpm
Cleaning width
1.7m
Working voltage
24V Working
Power supply mode
lithium battery (24V 26AH * 2)
Cleaning type
dry cleaning, water washing
Brush material
nylon
Boundary dimension
2820*500*190mm
Equipment weight
36kg
Operating temperature range:
- -20-50 C
Maximum water consumption
20L/min
Four reasons for choosing

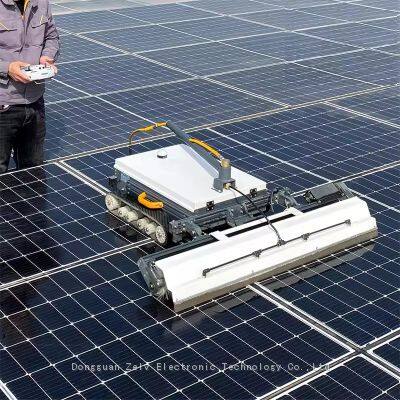

Remote control photovoltaic cleaning robot X7
specification
Product parameter
Principle of operation
| DC motor controls traveland brush rotation
|
Operating voltage
| 24V
|
Power supply mode
| Lithium battery (24V)*2
|
Endurance
| 4-5h
|
Idle speed
| 250 rpm
|
Cleaning width (brush head length)
| 1100mm
|
Cleaning type
| Dry cleaning/washing
|
Brush material
| Nylon
|
Travel speed
| 22m/ min
|
Water consumption
| Max. 24L/ min
|
Control mode
| Remote handle control
|
Working angle
| 15°≤
|
Operating temperature range
| -20-50℃
|
Outline dimension
| 1220*500*190mm
|
Equipment weight
| 37kg
|
Manufacturing Technique
Fall prevention system, no fear of falling at any control.
The photovoltaic cleaning robot may fall off the photovoltaic panel due to misoperation and other reasons, resulting in loss or danger!
X7 Robot anti-fall system The front and rear ends are equipped with four high-precision sensors, which will automatically stop when moving forward or backward to the blank area on the edge of the photovoltaic panel, and the drop detection indicator light will light up. At this time, only the remote controller can be operated to drive away in the opposite direction, effectively avoiding the risk of falling.
Innovative patented technology of water curtain quick cleaning
After a large amount of dirt is stripped off the photovoltaic panel by the brush head, it may lead to secondary pollution; On X7 robot, a multipoint water spraying device is arranged at the front end of the robot roller brush to sprayfan-shaped spray and connect it into sheets to form astrong water curtain to quickly drive sewage off the photovoltaic panel;
150m remote control cleaning to avoid personnel risks.
Cleaning personnel standing on the photovoltaic panel or walking on the roof have certain safety risks! The remote control distance of X7 robot is150 meters, which is easy and safer. Adopting imported RF remote control technology, the signal is more stable and the anti-interference ability is stronger than that of conventional communication technology;
High-site design has superior obstacle-surmounting ability
Excellent anti-skid and passability are adopted, and the un-evenness is still flat. The robot adopts imported rubber anti-skid crawler to adapt to the inclination angle within 15, and the maximum passing distance is 15cm.
Low battery alert, no fear of stopping in the middle of the road
When the battery life lasts for 4-5 hours, the power of the robot is less than 20%,and the red indicator light above the fuselage flashes. lt is necessary to return to replace the battery to avoid running out of power and the machine cannot return because it stays too far or in an inaccessible area.
The machine weighs 37kg and is detachable for easy handling.
The whole machine with all-aluminum body is 37KG, which exceeds the ultra-light weight of the same class. One person can complete the disassembly/assembly of the brush head the car body and the battery in 30 seconds, which makes the equipment easy to carry.
