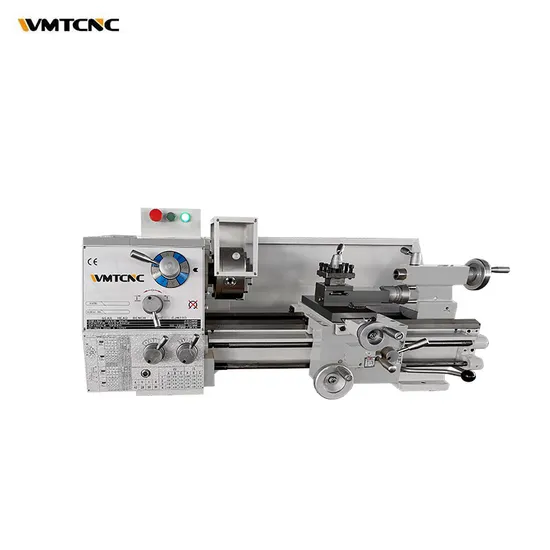

2023 new bench mechanical lathe machine CJM280 bench metal lathe for hobby

Product Description

Product Description
High precision bench lathe CJM280 metal manual lathe machine price features:
1. Suitable for turning internal and external cylindrical surfaces, end faces, tapered surfaces and metric and imperial threads, etc.
2. Widely used at home and abroad in small and medium-sized enterprises, research institutes,individual industries and repair industries.
3. With the corresponding function modules, other special cutting processes can be achieved.

Model	CJM280
Max. swing over the bed	280 mm
Max. length of work piece	500 mm	750mm
Max. swing over cross slide	165 mm
Max. cross slide travel	185mm
Max. longitudinal travel over tool post	75mm
Spindle bore	38 mm
Spindle taper	MT5
Spindle speed range	8 steps: 90-1800r/min
Metric thread kinds	18
Metric pitches range	0.2-3.5 mm
Inch thread kinds range	34
Inch pitches range	4 1/2-48T.P.I
Module threads kinds	24
Module threads range	16-120D.P
Longitudinal feed range	0.05-0.35 mm/r
Cross feed range	0.025-0.18 mm/r
Tailstock quill travel	75 mm
Tailstock quill taper	MT3
Motor power	750w
N.W/G.W(without stands)	260/300kgs	270/320kgs
Overall dimensions(L*W*H)	1170×650×650mm	1420×650×650mm
Packing size(without stands):(L×W×H)	1310×770×750mm	1530×770×750mm

Detailed Images
Company Profile

FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
