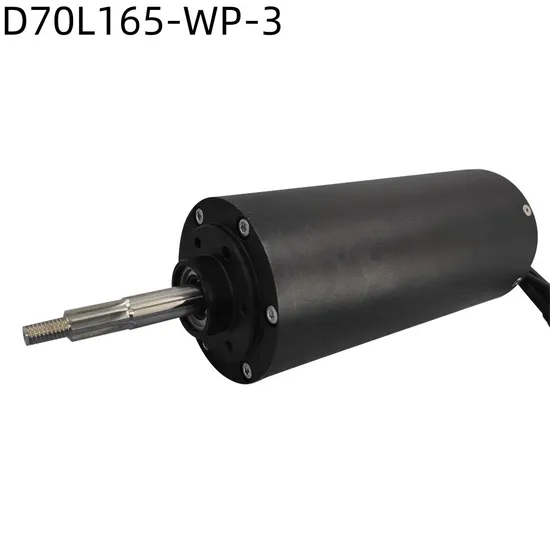

12s-32s 90kv D70L165 Waterproof Brushless Electric Motor 12.6kw Peak

US$480.00
1-499 Pieces
US$250.00
500+ Pieces

Basic Info.

Model NO.
D70L165-WP-90Kv
Excitation Mode
Permanent Magnet
Function
Driving
Casing Protection
Closed Type
Number of Poles
10
Structure and Working Principle
Brushless
Type
Others
Certification
ISO9001
Brand
Quanly
Housing
CNC Black Anodizing Aluminum Alloy
Motor Type
Permanent Magnet Synchronous Motor
Winding
3.5t
Construction
12 Slots/10 Poles
Peak Power
12.6kw
Working Voltage
12-32s(36-134.4V)
Peak Current
170A
Max Speed
12096 Rpm
Peak Torque
21n*M
Continuous Working Current
70A
No Load Current @8.4V
1.7A
Lifespan
10,000 Hrs
Dimension
D70*L165 mm
Weight
3.1kg
IP Grade
IP68
Transport Package
Carton Package
Specification
25*20*20cm
Trademark
Quanly
Origin
China
HS Code
8501320000
Production Capacity
2000 Units Per Month

Packaging & Delivery

Package Size
35.00cm * 20.00cm * 18.00cm
Package Gross Weight
7.000kg

Product Description

ApplicationsApplications:
Electric Propulsion for various watercrafts
1. Efoil / Waterbike
2. Jet Surf/Surboard
3. Underwater thruster
4. Small boat /SUP / Kayak
5. POD drive
6. Jetski / Speed Boat
7. Yacht
Either work with propeller directly or as an integrated part in
a airtight cabin of trolling motor/outboard motor / PODDyno Tester Report
D70L165-100Kv at 60V
No.C_Voltage (V)C_Current (A)C_Input Power(W)M_Voltage (V)M_Current
(A)		M_Input Power (W)M_Efficiency
(%)		M_Speed (rpm)M_Torque (N*m)M_Output Power(W)
059.61999948.7599982906.16992244.3441.7000012894.32006892.2937763774.0000042671.2771
159.5259.8800013563.33007844.0951.7900013538.86010792.25087762055.0240043264.629395
259.40000271.684256.95019543.88000162.774216.43017691.83578560266.1360043872.191895
359.29999982.6999974903.7299843.72000173.2300034846.02978591.23946458647.2000044421.491699
459.20999992.5199975477.5200243.58000282.7200015399.33984490.27854957218.1360044874.445801
559.119999102.9000026081.7299843.47000192.9000025984.60009889.14275455769.1360045334.837402
659.029999112.56639.08984443.389999102.3600016518.79003987.72596543910.0400055718.670898
Product Description Quanly D70L165 Series BLDC motors feature slotted design with internal rotor diameter at 70mm, compact & ruggedized, excellent heat dissipation, and waterproof. Thanks to the reduced air gap, the flux density is higher and torque production is more effective and efficient. Suitable for electric marine propulsion industry when your application requires accurate control of speed, torque and position.1. Working voltage: 60V/72V/84V/96V (eFoil)2. Rated Power: 5000w~8000W3. Peak Power: 13Kw4. Speed: 8640 rpm5. Rated Torque: 10N*m6. Peak Torque: 20N*m7. Motor Efficiency: >87%
Product Parameters
VariantsD70L165-90
Winding turn & connection3.5T
Working Voltage 12-32S (36-134.4V)
Max RPM 12,096
KV (RPM/V) 90
No Load Current @8.4V 1.7A
Kt(N*M/A)0.1328
Max Power (KW) 12.6
Max Torque(N*M) 21.0
Continuous working current(A)70
Peak Current (A) 170
Max Efficiency 92.0%
Net Weight (kg)3.1
Construction12N/10P
DimensionD70*L165 mm
Shaft Dimension D12*34mm+M8*25
Wire Length 1.5m
Connector 10mm
Working Life10000H
Customize per your request
Motor drawing
Wiring Diagram
