Product Details
Product Description
Product Description
Features:
1. The dot peen marking machine operates with low noise, low energy consumption and high energy, and is easy to maintain.
2. The machine is equipped with an all-copper motor and uses a one-piece four-track drive for more accurate lettering.
3. The nameplate marking machine Using WINDOWS operating system, the software editing function is powerful, easy to learn and use: you can edit any Chinese characters, numbers, letters and graphics.
4. The whole dot peen metal marking machine is light weight, without control box, easy to carry and save freight.
Technical Data:
Product Name

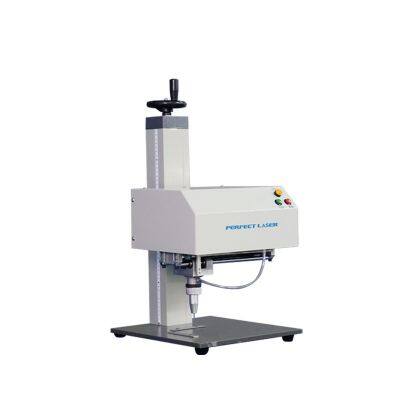

| Desktop dot peen Metal Nameplate Marking Machine
|
Model
| PEQD-200
|
Machine Type
| Flat Marking
|
Working Area
| 190x120mm (Customizable)
|
Marking Accuracy
| 0.02mm
|
Marking Speed
| 3-5 words / s
|
Marking Depth
| 0.1-1mm
|
Lifting Range
| 0-300mm
|
Machine Power
| ≤200w
|
Power Supply
| AC (110-220V) ±10% , 50Hz
|
Air Pressure
| 0.2-0.6 Mpa
|
Working Environment
| 0-40℃, No condensation
|
Whole Machine Weight
| 25 kg
|
Overall size
| 340*310*650mm
|
>>
