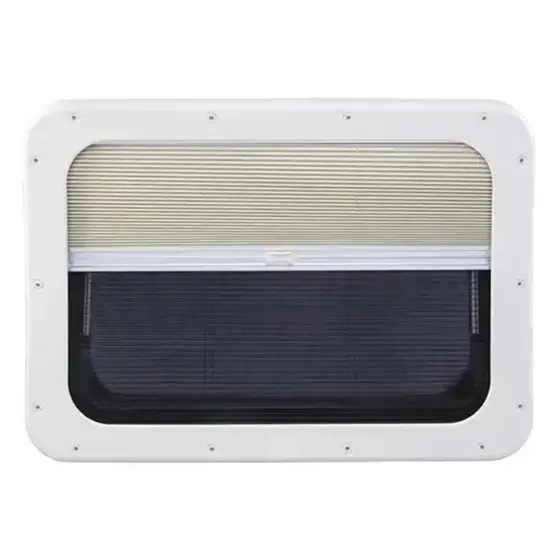

RV Window with Pleated Blind, Double Glaze Acrylic, and Customizable Color

Product Description

Product Description
Features & Functions:*Premium Aluminium Alloy Hinge for Enhanced Durability
*Specialized Waterproof Rubber Seal Ensuring Full Protection
*Telescopic Strut for Multi-Angle Stay Open Function
*Dual Lock Positions with User-friendly Plastic Handle
*Double Glazing Dome Top, UV Resistant, E-Mark Certified
*High-Quality ABS Inner Shell for Robust Structure
*Independent or Synchronized Blind System, Lockable in Optional Positions
*Maximum Opening Angle: 45° for Optimal Ventilation

Product name			Crw curved roof window
Colour			Custom color
Logo			Custom printed logo

Specifcation HxW(mm)	Cut hole HxW(mm)	Hole fillct(mm)	Weight(kg)
300x500	303x503	R70	2.6
300x700	303x703	R70	3.3
350x600	353x603	R70	3.2
350x1200	353x1203	R70	3.88
350x1450	353x1453	R70	6.9
400x700	403x703	R70	4.0
400x1200	403x1203	R70	6.4
450x500	453x503	R70	3.3
450x610	453x613	R70	3.9
450x900	453x903	R70	5.4
450x1000	453x1003	R70	5.9
450x1100	453x1103	R70	6.4
500x300	503x303	R70	2.5
500x450	503x453	R70	3.3
500x520	503x523	R70	3.5
500x900	503x903	R70	5.8
500x1200	503x1203	R70	7.4
520x500	523x503	R70	3.5
520x900	523x903	R70	5.9
550x700	553x703	R70	5.0
550x900	553x903	R70	6.2
550x1100	553x1103	R70	7.3
550x1450	553x1453	R70	9.3
600x350	603x353	R70	3.2
800x1000	803x1003	R70	8.9
800x1200	803x1203	R70	9.29
900x900	903x903	R70	8.9

Transport package drawing
FAQ
A: Are you a trading company or a manufacturer?
B: We are an integrated industrial and trade company with over 10 years of professional experience. A: What's your MOQ for OEM
products?
B: The MOQ is generally 500pcs per style.
A: What is the sample delivery time and mass production delivery time?
B: Sample delivery typically takes 7 days, while mass production usually takes 20 days.
A: What are your payment terms?
B: For small orders, payment is made upon delivery. For large orders, a 30% deposit is paid upon signing the contract, and the remaining 70% is paid before
delivery, with the total payment cleared for delivery.
A: May I visit your factory?
B: Absolutely, you are welcome anytime. We can arrange to pick you up from the airport or station.

---
