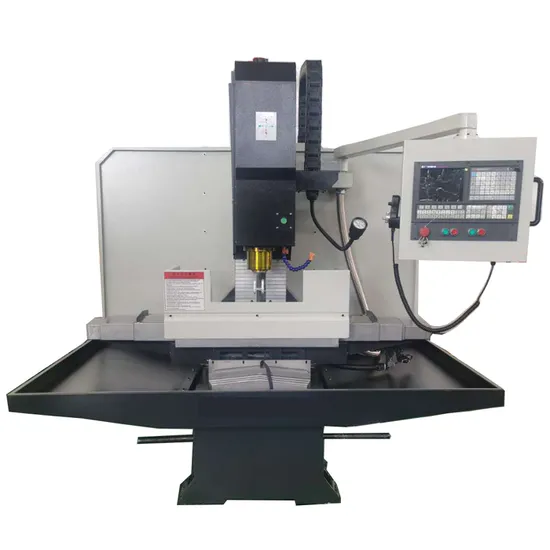

Small Metal cnc vertical machining center CNC Milling Machine XH7126
| Model | XH7126 | XK7126 |
| Main Motor Power KW | 3.7kw | 3.7kw |
| Spindle Max. Rotating Speed | 8000rpm | 6000rpm |
| T slot | 14x3x80 | 14x3x80 |
| table load | 200kg | 200kg |
| rapid movement speed X/Y/Z | 15/15/15m/min | 15/15/15m/min |
| cutting feed speed X/Y/Z | 1-6000mm/min | 1-6000mm/min |
| Spindle Taper | BT40 | BT40 |
| Worktable Size | 800x260 | 800x260 |
| Travel(Longitudinal X/Horizontal Y/Vertical Z) | 450x300x400mm | 500x300x400mm |
| Distance of Spindle Axis to Guideway Plane | 360mm | 360mm |
| Distance of Spindle End to Worktable | 90-520mm | 90-520mm |
| Positioning Accuracy | ±0.015mm | ±0.02mm |
| Repeated Positioning Accuracy | ±0.0075mm | ±0.01mm |
| Machine Overall Dimension (L*W*H) mm | 2200×1900×2200 | 2200×1900×2200 |
| Machine Net Weight KG | 1500 | 1500 |
| Magazine Capacity | 12 | / |
| tool weight | 8kg | / |
| tool change time | 12s | / |
| | | |
| Configuration | |
| system | GSK | |
| Main motor | 3.7kw servo motor | |
| Feeding motor | Sever motor | |
| Spindle | TAIWAN 8000rpm | |
| Leading screw | TAIWAN | |
| tool magazine | TAIWAN 12PCS | |
| Tool magazine | 12pcs umbrella type from TAIWAN | |
| 3 axis linear guideway | TAIWAN ABBA | |
| Spindle taper | BT40 | |
| | | |
| Spare parts: | | |
| name | brand | |
| Spindle bearing | NSK | |
| Leading screw bearing | NSK | |
| Coolant pump | China famous brand | |
| Central lubrication station | China famous brand | |
