Highspeed Injection Molding Machine Hxh260 Produce 24 Cavities Spoon, Fork, Knife

Product Description

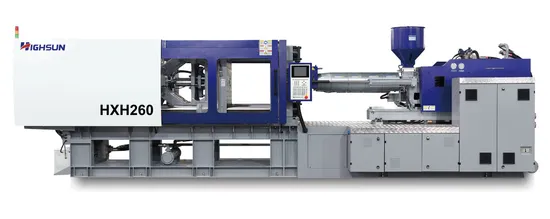

HXH260 injection molding machine
Specifications

MODEL: HXH260
TECHNICAL PARAMETER TABLE			A	B
INJECTION UNIT	SCREW DIAMETER	mm	50	55
	SCREW L/D RATIO	L/D	24	22
	INJECTION CAPACITY IN THEORY	cm3	422	510
	INJECTION WEIGHT(PS)	g	384	464
	INJECTION PRESSURE	MPa	161	133
	INJECTION VELOCITY	mm/s	320
	PLASTICIZING CAPACITY	g/s	57	80
	SCREW SPEED	rpm	400
CLAMPING UNIT	CLAMPING FORCE	KN	2600
	MOVING MOULD-PLATE STROKE	mm	530
	MAX. MOULD HEIGHT	mm	600
	MIN. MOULD HEIGHT	mm	230
	SPACE BWTWEEN TIE-BARS (W*H)	mm	610*560
	HYDRAULIC EJECTOR FORCE	KN	80
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR/DRIVING POWER	KW	30+30
	HEATING CAPACITY	KW	17.8
	MACHINE DIMENSION (L*W*H)	m	6.49*1.80*2.11
	MACHINE WEIGHT	t	10
	OIL TANK CAPACITY	L	560

HIGHSUN thin-wall high speed IMM series is based on years of experiment and researching,specifically for the molding cycle is short,high speed injection molding requirement products,Outstanding performance in the aspects of motion characteristics, machine precision,sevice life and so on.Widely used in packaging,medical and 3C electronic products.
Product advantages:
1.With CANbus EtherCAT bus communication,the compuer sustem is full digital controlled.
2.The temmperature contral adopts special control module,The accuracy can achieve 1 degree.
3.With the power monitoring function,it can monitor the current energy consumption during the production.
4.The special single cylinder strcture drastically reduces the return-oil amount during the high speed injection.At the same time,it reduces the return-oil pressure,In this way,it increases machine injectuib acceleration.
5.In using the graphite steel sets as well as thin oil lubrication,the bent elbow connecting rods and guide bars have better bearing resistance and abrasive resistance,The machine has a longer service life.
6.Controlled by the proportional direction valve,The movement can accelerate quickly.During the high speed running,it can operate steadity and precisely control the mold open position.
7.The hydraulic system adopts double servo drive control.It has the advantages of high effciency,energy saving and low noise.Meanwhile,it can realize mold-open and charge sunchronization function.
Product Produced by High-speed Injection Molding Machine

Factory
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.

---
