Basic Info.
Model NO.
VMC1690, VMC1890, VMC20100
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Table Size
1800X900,2000X900,2100X1000
Specification
VMC1690, VMC1890, VMC20100
Production Capacity
1000PCS/Year

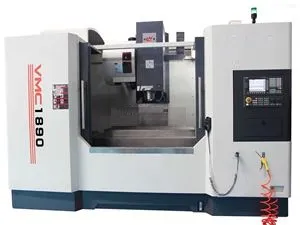

Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical specifications:
| Specification | Units | VMC1690 | VMC1890 | VMC20100 |
| Table size | mm | 1800*900 | 2000*900 | 2100*1000 | |
| X axis travel | mm | 1600 | 1800 | 2000 |
| Y axis travel | mm | 900 | 900 | 1000 |
| Z axis travel | mm | 700 | 700 | 900 |
| Max. table load | kg | 1600 | 1600 | 2000 |
| T slot(number-width*pitch) | - | 5-22*165 | 5-22*165 | 5-22*185 |
| Max. spindle speed | rpm | 6000/8000 | 6000/8000 | 6000/8000 | |
| Spindle taper | mm | BT50 | BT50 | BT50 |
| Main motor power | kw | 18.5 | 18.5 | 18.5 |
| X/Y/Z rapid traverse speed | m/min | 15/15/12 | 15/15/12 | 15/15/12 |
| Cutting feed speed | mm/min | 1-5000 | 1-5000 | 1-5000 |
| Guide rail type | - | Linear rail /
X/Y axis linear rail ,Z axis hard rail |
| Distance from spindle axis to column surface | mm | 950 | 950 | 1050 |
| Distance between spindle nose and table surface | mm | 105-805 | 115-815 | 100-1000 |
| Positioning accuracy | mm | ±0.01 | ±0.01 | ±0.01 |
| Repeat positioning accuracy | mm | ±0.0075 | ±0.0075 | ±0.0075 |
| Tool magazine | - | Arm 24 | Arm 24 | Arm24 |
| Max. tool diameter | mm | 112/200 | 112/200 | 112/200 |
| Max. tool weight | kg | 18 | 18 | 18 |
| Machine weight | kg | 15000 | 16000 | 18000 |
| Overall dimension(L*W*H) | mm | 4500*3350*3200 | 5100*3800*3200 | 5600*3800*3200 |
>>
