1.Adopts 102HP Engine for higher work efficiency, especially for working in deep mud field.
2. Fuel tank capacity 130L can meet the whole day's work.
3. Uses Gear box ZKB85 and 45cc high quality domestic HST for working more smoothly.
4. Min ground clearance 36cm and rubber track 550*90*56 ensure machines work faster in deep mud field.
5. Small grain Tank 0.35m3 can make sure of high unloading efficiency.

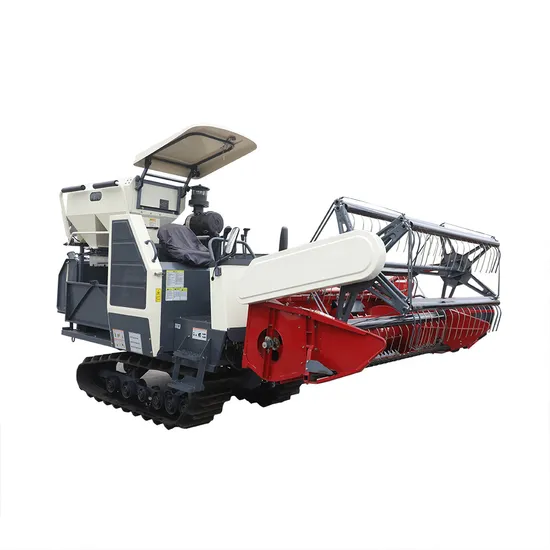

| Model | 4LZ-6.0P |
| Type | Self-propelled full feeding |
Dimension
(Operation) | Length(mm) | 5150 |
| Width(mm) | 2890 |
| Height(mm) | 3030 |
| Weight(kg) | 3400 |
| Engine | Model | Changchai4G33TC |
| Type | Vertical, Water cool, Four-stroke, Direct Injection |
| Power(HP) | 102 |
| RPM(r/min) | 2600 |
| Fuel tank(L) | 130 |
| Gear Box Model | Hydraulic Gear Box ZKB85 |
| | HST | 45CC |
| Walking Part | Track(mm) | 550*90*56 |
| Track Gauge(mm) | 1350 |
| Ground Clearance(mm) | 360 |
| Harvesting | Cutting Width(mm) | 2200 |
| Feeding Capacity (kg/s) | 6 |
| Cutting Bar Lift | Hydraulic Control |
| Threshing | Type | Axial Flow Type with Beat Bars |
| Threshing Cylinder (mm) | 620*2010 |
| Cleaning Type | Vibrating Sieves+ Centrifugal Fan |
| Discharging | Small Grain Tank (0.35m3) | Manual |
| Work efficiency | (ha./h) | 0.5-0.9 |
| Crops | | Rice, Wheat, Soybean,Rapeseed |
