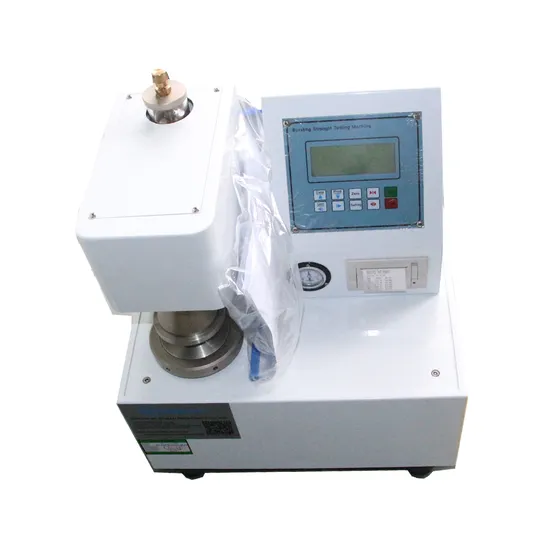

Electronic Digital Automatic Fabric Bursting Strength Tester

Product Description

Electronic Digital Automatic Fabric Bursting Strength Tester
1. One year free after-sale service2. High quality with reasonable price
Model: XB-OTS-209A

Introductions:
Paper Bursting Strength Test Machineis fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box;
The type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
Features of Bursting Strength Testing Machine 1. Very fast testing cycle gives fast feedback to the production 2. With automatic test grip instead manual hold the sample 3. Improvement of the operational safety regulations >> equipped a cover between plants to protectthe operator's hand during testing
4.Built-in LED light on the cover 5. It is applicable to test bursting strength for paperboard.6. Power protection ensure automatic record when power cut off.
Design standards:
JIS-L1004, L1018, L1031, K6328, P8131, P8112
Technical Parameters:

Capacity (Optional)	High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (switchable)	Kpa, psi, kg/cm^2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Load Resolution	0.001 kgf/cm2
Speed of Compression	High Pressure 170± 10ml/min
Specimen Clamping Force	>690kpa
Oil	100% silicon oil
Sensing method	Pressure Transmitter
Indicating Method & Display	LCD
Material of the Ring	Stainless Steel SUS304
Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/8 HP
Operation Method	Automatic
Dimension (L*W*H)	445*425*525 mm
Weight	Approx. 70 kg
Power	AC220± 10%, 50 Hz (customer specific)
Power Capacity	120W
Standard Configuration	Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets
Optional Configuration	Printer, Air Pump
Accessories	Rubber membranePiece wrench Aluminum calibration foils Silicone oil

General maintenance:1. Clean: Maintain the machine cleanliness at any time, wipe the machine with cotton to keep it clean before and after each use.2. Antirust:Spraying the rust oil on the surface of metal part of the machine weekly (2 hours after injection wipe)3. Lubricating oil: Endorsement lubrication oil on transmission components in machines (such as Screw) monthly ( use an ordinary oil can).4. Check the gear reducer oil should fill or replaced each half year.5. Glycerol should be completely replaced every half year.
Packing & Delivery & Shipping
1.Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
2.Within 15 days after getting the payment 3. Usually we delivery the equipment by air,by sea or by express. it depends on customer
About US
Our Main Products
Enviromental reliability Testing Series:
Temperature humidity cycling Test Chambers..
Environmental /Climatic test chambers...
High Low Temperature Chambers...
More...
Physical Testing Equipment Series:
Floor testing machine...
Tensile Strength Testing Machines...
Shaker/Vibration Test Machine...
More...
Our Services
We are here to help you. Services available: Replacement manuals
Consumables and replacement parts On-site maintenance and repair Warranty support Over-the-phone service support and advice If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.
Service repair: We prefer you contact us direct at the factory with any problems you may be experiencing. We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs. Rarely can a local contractor get all that done for you as quickly as we can. We also guarantee the work
RFQ Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
For More Information .....
Please do not hesitate to contact us!!!
Or Send your inquiry below...

---
