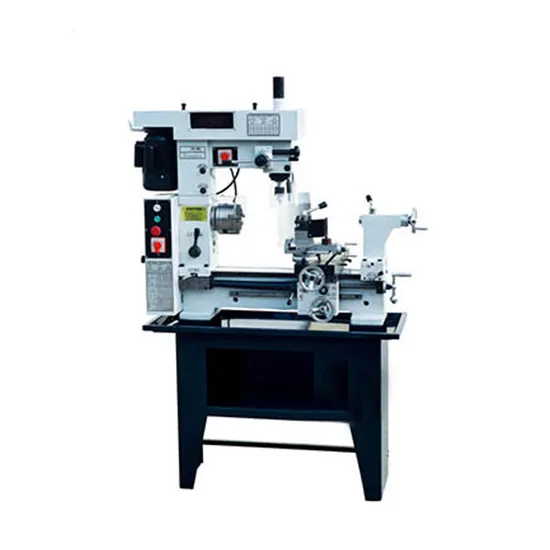

Features of manual metal lathe machine HQ500V Metric or Imperial thread cutting;
A kind of combination machines with turning, milling, drilling and threading.
| Specifications | HQ500V | HQ800V |
| Turning | Swing over bed | φ 420mm |
| Distance between centers | 500mm | 800mm |
| Max. longitudinal travel | 440mm | 740mm |
| Max. cross travel | 195mm |
| Taper of spindle | M. T. 4 |
| Spindle hole | φ 28mm |
| Step of spindle speed | Variable speed |
| Range of spindle speed | Low:0-630rpm,High:630-1800RPM |
| Barrel travel | 70mm |
| Taper of center | M. T. 3 |
| Metric thread range | 0.7-4 mm |
| Inch thread range | 4-30T. P. I |
| Longitudinal range of automatic feeding | 0.088-0.55mm/0.0035-0.022'' |
| Cross range of automatic feeding | 0.088-0.55mm/0.0035-0.022'' |
| Drilling and milling | Max. drilling capacity | φ 22mm |
| Worktable size (L*W) | 475× 160mm² |
| Max. end mill | φ 28mm |
| Max. face mill | φ 80mm |
| Distance between spindle center and column | 285mm |
| Distance between spindle and worktable | 306mm |
| Headstock travel of up and down | 110mm |
| Spindle taper | M. T. 3 |
| Step of spindle speed | Variable speed |
| Range of spindle speed | Low:0-800rpm,High:800-2800RPM |
| Swivel degree of headstock | ± 360° |
| Motor | Motor power | 0.55Kw |
| Shipping data | Packing size | 1130×580×1100mm(HQ800:1430×580×1100mm) |
| N. weight/G. weight | 245kg/280kg(HQ800:275kg/325kg) |
