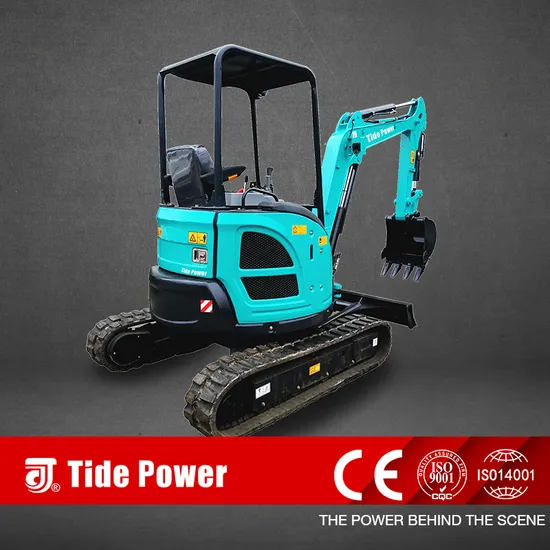

Small Size Excavator, Agricultural Excavator, Farm Excavator, 1 Ton Excavator, 2 Tons Excavator, 3 Tons Excavator, 4 Tons Excavator

US$11,250.00-13,950.00 1 Piece (MOQ)

Basic Info.

Model NO.
TD30U
Type
Crawler Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Size
Small-Scale
Certification
CE
Condition
New
Transport Package
Plastic
Specification
2T
Trademark
Tide Power
Origin
China
Production Capacity
1000

Product Description

Model TD10 TD12 TD20U TD25U TD30U
Dimensions
A- Overall Length 2770mm 2550mm 3550mm 3870mm 4010mm
B- Overall Height 1000mm 1500mm 2200mm 2360mm 2360mm
C- Overall Width 925mm 870mm 1320mm 1420mm 1540mm
D- Track Width 180mm 180mm 250mm 250mm 250mm
E- Platform Turning Radius 1330mm 1330mm 730mm 645mm 710mm
F- Length of Track 1210mm 1200mm 1650mm 1895mm 1895mm
G- Sprocket to Idler Centres 910mm 910mm 210mm 250mm 250mm
H- Between Undercarriage and Ground 380mm 380mm 210mm 250mm 250mm
I- Between Boom and Ground - - 1320mm 1340mm 1380mm
J- Width of Platform 896mm 896mm 970mm 1350mm 1350mm
L- Between Platform and Ground 380mm 380mm 480mm 480mm 480mm
20FT Load 4 Sets 4 Sets 4/2 Sets 2 Sets 2 Sets
40GP Load 8 Sets 8 Sets 8/4 Sets 4 Sets 4 Sets
Performance
Engine Model KOOP PERKINS 403D-11
Power 8.6kW 14.7kW/2200Rmp
Operation Pressure 16Mpa 16Mpa 18Mpa 21Mpa 21Mpa
Max. Digging Force 7.2KN 7.2KN 12KN 17.6KN 18.2KN
Gradeability 30° 30° 30° 30° 30°
Ground Pressure 32Kpa 32Kpa 32Kpa 26Kpa 26Kpa
Travel Speed 2Km/h 2Km/h 2.7Km/h 2.3-4.1Km/h 2.3-4.1Km/h
Pump Flow Rate 21.6L/min 21.6L/min 2*17.6+6.6L/min 28L/min 28L/min
Platform Swing Speed 12rpm 12rpm 13rpm 13rpm 13rpm
Bucket Capacity 0.028m³ 0.06m³ 0.07m³ 0.08m³ 0.09m³
Bucket Width 410mm 410mm 450mm 500mm 550mm
Boom Swing - - 45°Left/78° Right
Overall Weight 800Kg 800Kg 1930Kg 2450Kg 2650Kg
Operating Dimensions
A- Max. Digging Height 2650mm 2650mm 3300/3825mm 3744/4335mm 3865/4510mm
B- Max. Dumping Height 1850mm 1850mm 2360mm 2670mm 2760mm
C- Max. Digging Depth 1650mm 1650mm 2200/2405mm 2200/2486mm 2580/2710mm
D- Max. Digging Radius 2900mm 2900mm 3975mm 4155mm 4375mm
