Car Spin on Oil Fuel Filter Making Filter Paper Pleating Machine
US$3,000.00-4,000.00
1 Piece
(MOQ)
Basic Info.
Model NO.
Sun Hong
Automatic Grade
Full-Automatic
Number of Folded Plates
4
Model
HD-1000-55
Max Width
1020mm
Pleating Height Range
5-55mm
Working Speed
0-125pleats/Min, Adjustable
Voltage
380V-50Hz
Motor Power
1.5kw
Pre-Heating Power
8kw
Range of Temperature
Room Temperature-200degrees
Room Temperature-200degrees
0.6MPa
Machine Weight
750kg
Machine Dimension
1600×1550×1650mm(L*W*H)
Transport Package
Wooden Case
Specification
make to order
Trademark
SUN HONG
Origin
China
Product Description

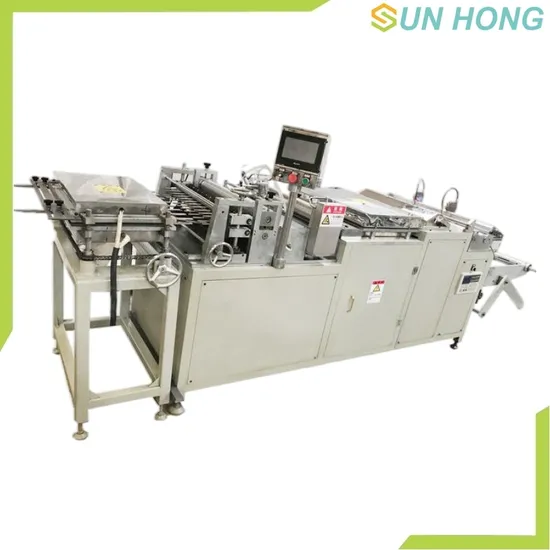

Auto Knife Pleating Machine Auto Knife Pleating Machine is an important equipment for producing filter element. It suitable for folding 8-100mm filter material.It simplifies the function setting.operation and maintenance to the greatest extent through the menu graphicinterface,with higher reliability Versatility and flexibility.This machine can automatically adjust the folding height, and can change the angle of the knife according to the thickness of different filter materials without damaging the filter materials.
Application 1.The production line is applicable to automobile three filter industry, hydraulic industry, purification industry, water treatment and other industries. 2.The company can customize origami production lines of different specifications according to customer needs (i.e. machine widening and folding height adjustment). This machine can also customize M-type origami machine according to customer requirements. Main components of equipment 1. Automatic paper tray 2. Pre slitting feeder 3. Printer 4. Automatic counter 5. Filter paper folding machine (the host is equipped with preheating setting board and computer control box). Technical Parameter
