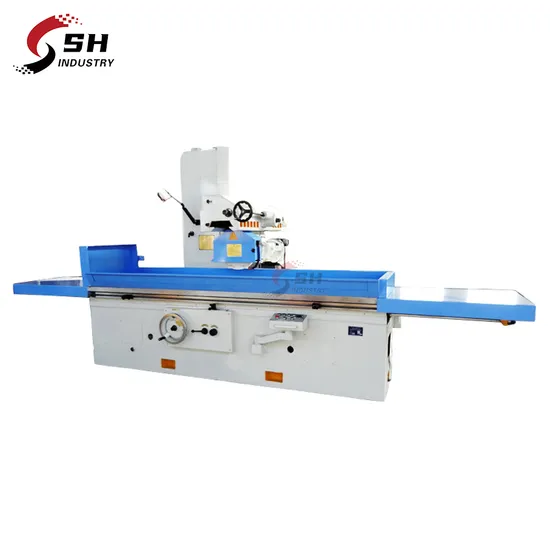

Horizontal Surface Grinding Machine M7163 Cheap High Quality Surface Grinder Machine

Product Description

Horizontal Surface Grinding Machine M7163 Cheap high quality surface grinder machine
Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:

Technical specifications		Units	M7163x1250	M7163x1600	M7163x2000
Size of work table (L x W )		mm	1250x630	1600x630	2000x630
Max. Longitudinal movement of worktable		mm	1350	1700	2100
Max. Distance from the spindle centerline to the worktable surface		mm	845	845	845
Max. Cross movement of grinding herd		mm	700	700	700
Max. Vertical movement of grinding head		mm	600	600	600
Vertical movement of the grinding head by hand wheel	Every lattice	mm	0.01	0.01	0.01
	Each turn	mm	1.00	1.00	1.00
Rapid lifting motor	Power	KW	0.37	0.37	0.37
	Speed	R/min	1450	1450	1450
Abrasive wheel dim (L x D x W)		mm	400x127x40	400x127x40	400x127x40
Speed of grinding wheel		r/min	1440	1440	1440
Total power of motor		KW	14	14	14
Power of spindle motor		KW	7.5	7.5	7.5
Power of oil pump motor		KW	5.5	5.5	5.5
Processing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
Package(L x W x H)		mm	3800x2700x2800	4500x2700x2800	5500x2700x2800
Net weight		Kg	5100	5150	5200

Detailed Photos

Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
