Rotary Shear Cutter Hydraulic China Cut to Length 0.3-3.0mm Thick

Product Description

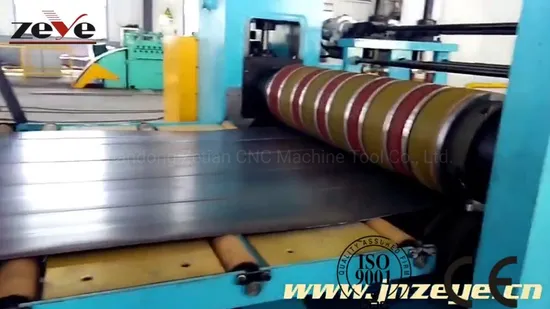

Slitting and Cut to length line ZSCL series
Slitting and Cut to length line is mainly used for jobs like uncoiling, leveling, slittiing, measuring the length, cutting and stacking.
Application Material: cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc
Main Units

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Feeding device	1 set
4	Pre- leveler	1set
5	Looper	1 set
6	Side guide	1 set
7	Slitter Machine	1 set
8	Scrap Rewinder	2 sets
9	Transition Roll Table	1 set
10	Side Guide	1 set
11	Precision Leveler	1 set
12	Tail Plate Pinch Machine	1 set
13	Hydraulic Shear Machine	1 set
14	Stacker	1 set

Layout of Cut to Length Line
Main Technical Parameters

Model	ZSCL-1	ZSCL-2	ZSCL-3	ZSCL-4
Material thickness	0.2-1.0mm	0.3-2.0 mm	0.4-3.0 mm	0.5-4.0 mm
Material width	300-1250 mm	300-1600 mm	300-1800 mm	300-1800 mm
Slitting quantity	35	35	35	25
Width accuracy	±0.05 mm	±0.05 mm	±0.1 mm	±0.1 mm
Cutting burr	<3%	<3%	<3%	<3%
Finished length	300-3000 mm	300-3000 mm	300-4000 mm	400-6000 mm
Length accuracy	<±0.3 mm	<±0.3 mm	<±0.3 mm	<±0.3 mm
Diagonal accuracy	<±0.5 mm	<±0.5 mm	<±0.5 mm	<±0.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1 mm/m2	<1 mm/m2
Line speed	70 m/min	60 m/min	60 m/min	60 m/min
Coil weight	5,10,15 t	10,15,20 t	15,15,20 t	20,25,30 t

Our advantages
1.Reasonable structure, convenient to adjust, high precision and high efficiency.
2.Japan MAZAK, Spain CORREA CNC etc.the world most advanced high precision processing equipment to ensure to produce out the high precision parts.
3. Every part has been done it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance
4. Strictly inspection during production and assembly, which in order to ensure every parts to be used is qualified.
Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.
Our Shear Production Lines have been exported to Australia, Mexico,Ukraine, Vietnam, Philipines, Uzbekistam,Algeria, Ethiopia,Thainland, Dubai, Sudan, Brazil, Myanmar, Congo etc. 30 countries and areas.
Company introduction
Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business, ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel,
aluminum, copper and other metals.
We have one professional technical team and after sales service team, we are ready to serve you at all the time.
Welcome to visit our factory.
FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .

---
