Name
High Precision Slant Bed CNC Turning Center Lathe
Max.Processing Length
300mm
Tool Post Type
8 Station Turret
Guideway
Taiwan Linear Guideway
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

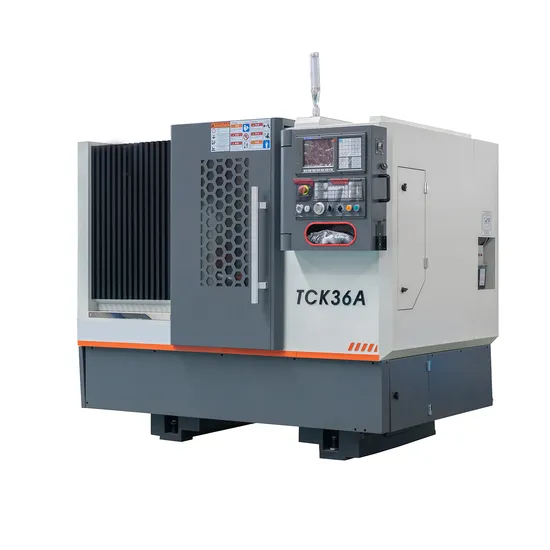

TCK36A TCK46A TCK50A Metal Turning Inclined Bed CNC Lathe
(with tailstock)
Standard accessories:
GSK980TC3 CNC controller,
Taiwan high precision linear rolling guide way,
5.5 kw servo BL main spindle motor,
spindle unit high spindle speed 4000rpm,
6 inch hollow type hydraulic 3-jaw chuck,
8-station hydraulic turret,
Hydraulic tailstock,
automatic lubrication system and cooling system,
work light, signal light
Optional accessories:
Siemens/Fanuc CNC controller
chip conveyor
Specification:
| Model | Unit | TCK36A | TCK46A |
| Max. Swing over bed | mm | Φ360 | Φ460 |
| Max. Swing over carriage | mm | Φ140 | Φ260 |
| Max. Turning length | mm | 300 | 350 |
| Chuck size | inch | 6 inch | 8 inch |
| X-axis travel | mm | 170 | 240 |
| Z-axis travel | mm | 350 | 400 |
| Max. Spindle speed | rpm | 4000rpm | 3500rpm |
| Spindle speed change | | Stepless | Stepless |
| Spindle nose | | A2-5 | A2-5 |
| Spindle bore diameter | mm | Φ48 | Φ56 |
| Through bar capacity | mm | Φ40 | Φ45 |
| X/Z-axis rapid traverse | m/min | 24/24 | 24/24 |
| X/Z-axis motor torque | NM | 6/6 | 7.5/7.5 |
| Main motor power | KW | 5.5 | 7.5 |
| Standard Turret | | 8 station turret | 8 station turret |
| Tool shank size (square turning tool/boring cutting tool) | mm |
20x20/Φ25 |
25x25/Φ32 |
| Quill diameter | mm | 65 | 70 |
| Tailstock quill taper | | MT4 | MT5 |
| Max. Travel of tailstock | mm | 200 | 200 |
| Max. travel of quill | mm | 70 | 80 |
| Slant bed | degree | 45 degree slant bed | 30 degree slant bed |
| Total rated power | kw | 9 | 11 |
| Total rated current | A | 19 | 23 |
| Overall dimension(L*W*H) | mm | 2200x1600x1850 | 2500x1700x1980 |
| Machine weight | KG | 2400 | 3000 |
>>
