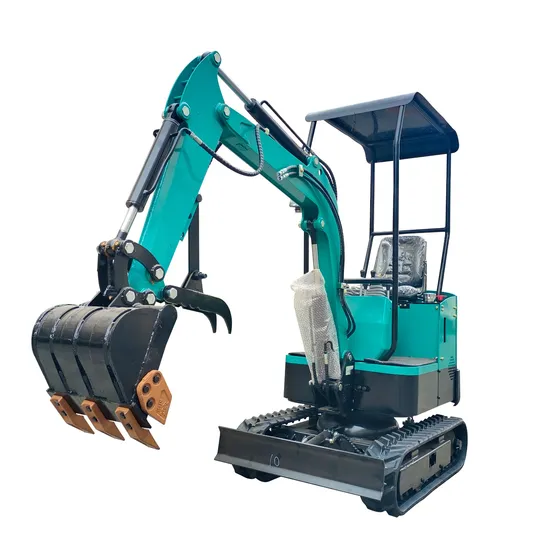

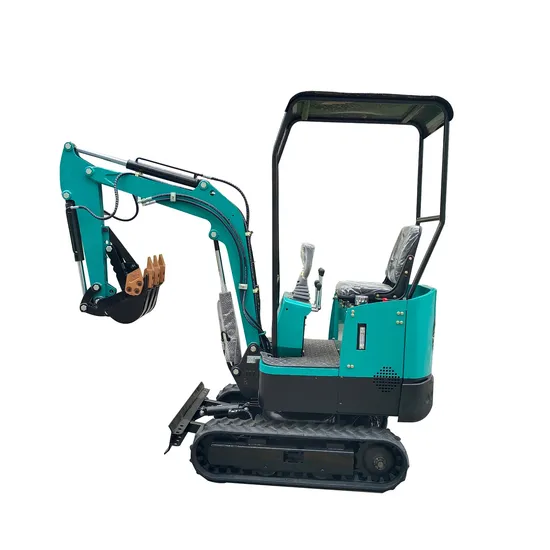

The mini crawler excavator is an economic type excavator with EURO V engine, the emission of engine suitable for the environment protection and low fuel consumption, The machine with blade, with rubber track , the track can change to steel track, with hydraulic oil radiator and canopy ,compact suitable for small space working.
| Engine | Travel System |
| Model | KOOP( KD192F-1) | Travel motors | SMT310 |
| Type | Direct injection, air cooled, natural intake | Support roller quantities | 2×2 |
| Carrier roller quantities | 0 |
| No.engine cylinder | 1 | Travel speed | 2(km/h) |
| Bore and stroke | 92x75 | Drawbar pulling force | 8.3KN |
| Displacement | 0.499 | Gradeability | 58%(300) |
| Power output | 7kw/3000rpm | Rubber track width | 180mm |
| Max. torque | 27N.m/2200rpm | Rubber track Thickness | 40mm |
| Hydraulic System |
| Pump | 2ZGPA0D6S0L0 |
| Type | Gear pump |
| Max. discharge flow | 18 (L/min) |
| Main control valves | DL80 |
| Oil cooler | Air cooled type |
| Swing System | Refilling Capacity & lubrication |
| Swing motor | OMR200 | Fuel tank | 7L |
| Swing motor type | Gerotor motor | Engine oil | 1.2L |
| Swing speed | 13 r/min | Hydraulic oil tank | 14.5L Oil Tank Level |
| | | 21.5L Hydraulic System |
| Bucket |
| Bucket capacity | 0.023m3 |
| Bucket width | 400 mm |
| Working ranges | |
| Boom length | 1500m |
| A | Max. digging height | 2600mm |
| B | Max. dumping height | 1830mm |
| C | Max. digging depth | 1715mm |
| D | Max. vertical digging depth | 1590mm |
| E | Max. digging radius | 3065mm |
| F | Max. digging radius at ground level | 2960mm |
| G | Min swing radius of work equipment | 1480mm |
| H | Swing radius at tail | 800mm |
| Digging Force |
| Arm length | 820mm |
| A | Bucket digging force | 7.2 KN |
| B | Arm digging force | 4.6 KN |
| Overall Dimensions |
| |
| A | Overall length | 2840mm | I | Track grounding length | 900mm |
| B | Ground contact length(Transportation) | 2611mm | J | Track length | 1233mm |
| C | Overall height(to top of boom) | 1130mm | K | Track gauge | 660mm |
| D | Overall width | 880mm | L | Track width | 840mm |
| E | Overall height(to top of cab) | 2220mm | M | Track Shoe width | 180mm |
| F | Counterweight ground clearance | 385mm | O | Counterweight height | 1025mm |
| G | Min. Ground clearance | 132mm | | | |
| Operating Weight and Ground Pressure and system pressure |
| Operating weight includes basic machine |
| Operating weight | 940kg |
| Ground pressure | 20 KPa |
| Hydraulic system pressure | 16Mpa |
MAIN PARTS:KOOP engine with EURO V emissionTraveling motorHydraulic oil radiatorsingle main pump
