1000L Steam Heating Mixing Tank Stainless Steel Mixing Tank

Product Description

Wax heating tank
G-SE series mixing tank is standard mixing tank equipped with wing lid(s) on the mixing tank top position and a bottom enclosure. Unlike our G-2C series and G-SC series mixing tank, G-SE series mixing tanks are widely used to wax heating process. The mixing speed of this wax heating tank can be big or small. Standard mixing speed for juice heating process is 25rpm, 36rpm or 60 rpm. Using heavy duty mixing paddle to push the wax in mixing tank and get the juice, sugar, wax evenly heated in short time. Of course, before you start the mixing system, you will need to melt the solid wax block into liquid. So, our G-SE series also called juice sugar melting tank or wax heating melting tank.
steam heating 1000L mixing tank capacity
The smallest wax heating tank we have ever made is 20Liter, heating by electric (resistance). Most hot sell wax heating tank are 200L to 500L capacity. We can also offer stainless steel mixing tanks in other capacity such as 1000L, 1500Ltr or 2000 Liter.
All of our mixing tank's capacity can be customized according to your wax production request.
Heating mode of G-SE series heating tank
We have standard electric heating wax heating tank, gas heating mixing tank as well as steam heating mixing tank for your reference.
Here below are some heating medium which are widely used in G-SE series wax mixing tank

Gas heating type	Natural gas, coal gas, iquefied petroleum gas ( lpg ), propane gas
Oil heating type	Heavy Fuel Oil, Heating Oil, Light oil
Electric supply	220V 60Hz 3phase AC 380V 50Hz AC

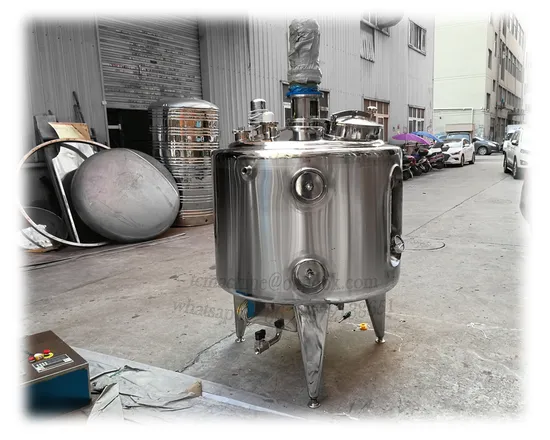

1000L steam heating mixing tank heating tank Picture
Specification of hot sell wax heating tank

Tank capacity	material	Diameter×Height	Agitator	Temperature control
300L	SS304 SUS316 Stainless steel	Φ700×1500	36rpm 100rpm 300rpm 100-1000rpm	Manual control Sami-automatic control PLC control
500L		Φ800×1600
800L		Φ1000×2000
1000L		Φ1100×2200
2000L		Φ1400×2300
3000L		Φ1500×2400
5000L		Φ1800×3200

The above listed mixing tank diameter and height are only for reference.
If you do not have special request on diameter and height of your wax heating tank, we will offer you our standard tank dimensions. Under special request, we can customize your tanks - tell us your request on the tank diameter or offer us your mixing tank drawing (mixing tank sketch) or maybe your hand sketching of the mixing tank, we will offer you a suitable solution accordingly.
Wax heating tank material and wall thickness
Most of our wax heating tanks are made of stainless steel material. SS304 (SUS304) and SS316 (SUS316) are widely used in our mixing tanks.
Usually for small capacity mixing tanks, such as 200L mixing tank, 300L mixing tank or a 500L mixing tank, our standard wall thickness will be 3mm. All our offer for mixing tanks are based on standard thickness. Offer for Customized wax heating tanks not included.
Heating function for wax heating tank
If you are going to make sugar cane candy or jaggery, you will need to heat the sugar cane juice to 115 to 120 degree. If you want to use this tank for a saponification reaction, you may only need to heat the soap paste to 50 to 60 degree C. or maybe you want to use this wax heating tank as a simple batch pasteurizer, 65 to 85 degree C is ok. No mater you use this mixing tank as wax cooking tank, as chemical soap reaction kettle or as juice batch pasteurizer, our mixing tank can meet all of your temperature request without any problem.
Cooling function for wax heating tank
Some users need a cooling process after heating. It is depends on your usage of this tank. If you use this tank as a cooling and heating tank, or we call it aging tank (ageing tank), you will need to cool the liquid product after heating process. Steam heating tanks can be cold by cool water or ice water directly. If your mixing tank was heated by electric or gas, you will need to cool the liquid product outside the mixing tank. Obviously most wax heating tanks no need cooling process. Also, cooling function is unnecessary in soap mixing process.
If more product detail needed, please contact us via email or whatsapp.

---
