Henan Reliable Coal Stone PC 800*600 Mobile Small Diesel Hammer Crusher

Product Description

Product Description

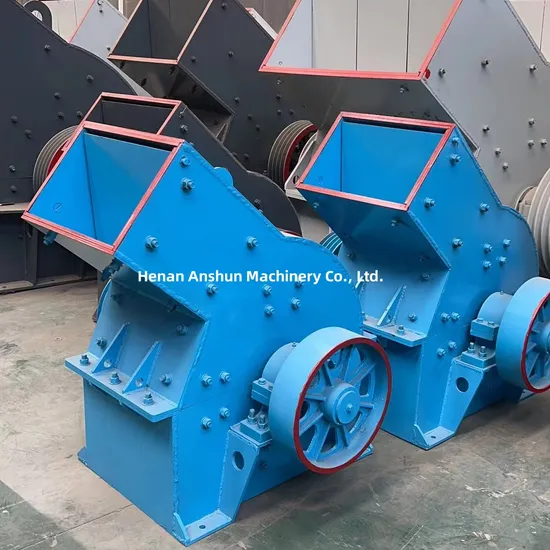

The hammer crusher is an important crushing equipment, mainly used for crushing hard materials such as stone and ore. By hammering, the material is broken into smaller particles. Types of hammer crushers are mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture, such as coal, cement, gypsum, alumen, brick, tile, limestone, etc. It has the features of a simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers request.
Performance Features
1. The hammer head of the hammer crusher introduces foreign advanced technology and adopts new technology for casting, which is more wear-resistant, impact-resistant and prolongs its service life. 2. The hammer crusher machinery can adjust the grate gap according to the size of the material to meet the different needs of different users. 3. The body of the hammer crusher equipment adopts a fully sealed device, which has less dust pollution in the workshop, and is safe and reliable. 4. Large crusher ratio and high production efficiency.Working Principle
The hammer crusher machine completes the crushing material operation by the impact energy. During the operation of the hammer crusher machine, the motor drives the rotor to rotate at a high speed, and the material enters the crusher cavity evenly. The high-speed rotary hammer impacts, shears, and tears the material, and all the materials are broken. At the same time, the gravity of the material itself makes the material from the high-speed rotating hammer head rush toward the baffle and the screen strip in the frame body. The material larger than the size of the mesh hole is retained on the sieve plate, they are struck and ground by the hammer until it is broken to the required discharge particle size. Finally, the materials discharged through the sieve plate.
Applicable Materials
The compressive strength of materials processed by hammer crusher generally does not exceed 150MPa, and the water content is less than 15%. It is often used to crush hardness materials such as limestone, coal, salt, gypsum, alum, etc.; it can also crush hard materials such as bluestone, pebbles, granite, shale, slag, lignite, etc.

Model	Input Size (mm)	Discharge Size (mm)	Capacity (t/h)	Power (kw)
PC 200X300	100	≤10	2-4	5.5
PC 300X400	100	≤10	5-7	11
PC 315x520	100	≤15	7-10	15
PC 400X600	120	≤15	10-15	22
PC 600X600	150	≤15	15-28	30
PC 600X800	150	≤15	18-32	55
PC 800X800	200	≤15	22-35	75
PC 1000X800	200	≤15	33-55	90
PC 1000X1000	300	≤19	45-70	110

Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.
Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
