4 Core 25mm Round/Flat Type 4X25mm2 450/750V Deep Well Water Submersible Pump Epr Rubber Cable

Product Description

Product Description

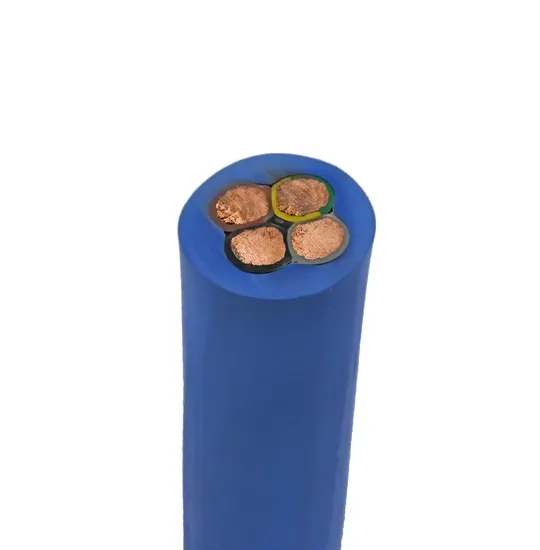

Copper Conductor EPR 3 4 5 cores Submersible Cable For Drinking Water (Round)
Applications
These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water
Dry or damp rooms, as well as outdoors and in industrial water
For connecting mobile, electrical equipment in industrial water
For use with submersible pumps
Submersion acc. AD8 standard down to 10 m depth Construction Conductor: Bare copper stranded class 5 to VDE0295, IEC 60228 Insulation: EPR type 3GI3 Outer Sheath: EPR type 3GM2, coloured blue,CPE or others Technical data Test Voltage 50Hz, 5 min: 2500V Rated Voltage: 450/750V Maximum admissible conductor Temperature in Operation: 90°C Short Circuit Temperature: 250°C Temperature Range:-40°C~+60°

NO. OF CORES X CROSS	OUTER DIAMETER		NET WEIGHT
	MIN. VALUE MM	MAX. VALUE MM	KG/KM
3 x 1.5	9.6	12.5	150
3 x 2.5	11.5	14.5	220
3 x 4	13	16	340
3 x 6	14.5	20	480
3 x 10	20	25.5	750
3 x 16	22.5	29.5	1100
3 x 25	26.5	34	1450
3 x 35	29.5	38	2100
3 x 50	34.5	44	2800
3 x 70	39	49.5	3800
3 x 95	44	54.6	4600
3 x 120	47.5	59	5400
4G1.5	10.5	13.5	190
4G2.5	12.5	15.5	280
4G4	14.5	18	390
4G6	16.5	22	520
4G10	22.5	24.5	950
4G16	26.5	28.5	1400
4G25	32	34	1950
4G35	33	42.5	2700
4G50	38	48.5	3600
4G70	43	54.5	4900
4G95	50	60.5	6200
4G120	53	65.5	7200
5G1.5	11.5	15	230
5G2.5	13.5	17	340
5G4	16	19.5	470
5G6	18	24.5	640
5G10	24	30.5	1150
5G16	27	35.5	1700
7G1.5	16.5	17.5	370
10G1.5	18.6	19.6	460
7G2.5	18.9	19.4	510
10G2.5	21.4	21.9	650

Company Profile
Packaging & Shipping
FAQ
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide oem project service?
Yes,oem & odm order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.

---
