High Capacity Heavy Duty Hydraulic Components 13.6 Tons Midddle Excavator

Product Description

Product Description

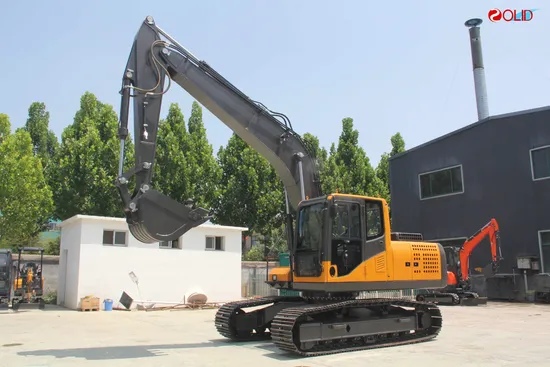

13 ton crawler excavator XE135B excavator construction machinery.
XE135B hydraulic excavator is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency.
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.
1. Engine
Imported BB-4BG 1TRP engine is used, featuring powerful force, low noise, low fuel consumption, and more
reliable operation.
2. Hydraulic system
Advanced energy-saving hydraulic system is used, and key hydraulic components are imported intemational brands, to ensure quality of the product; combined with latest research results, energy consumption is low and accurate control is achieved, to ensure powerful digging force and excellent operation efficiency.
3. Wider cab / new suspension seat
With increased interior space and 360° wider vision applied, it created a pleasant working environment for operators. Seat designed according to ergonomic principles is used, thus greatly enhancing comfort, with seat height adjustable by driver's weight through suspension air bag, such that operation is more comfortable.

Performance Parameters	Overall Weight: 13.6T	Bucket Capacity: 0.56m3
	Rated Power: 86/2200kW/rpm	Travel Speed (High/Low): 3.3/5.1 km/h
	Rotation Speed: 11.5rpm	Climbing Ability: 70%/35°
	Ground Pressure: 38kPa	Bucket Excavation Force: 98kN
	Arm Excavation Force: 74kN
Machine Dimensions	Total Length (during transport): 7910mm	Total Width: 2495mm
	Total Height (top of the boom): 2820mm	Total Height (top of the cabin): 2767mm
	Track Width: 500mm	Track Gauge: 1995mm
	Minimum Ground Clearance: 425mm	Rear Swing Radius: 2380mm
	Track Ground Length: 2930mm	Track Length: 3630mm
Operating Range	Maximum Digging Height: 8600mm	Maximum Unloading Height: 6120mm
	Maximum Digging Depth: 5455mm	Maximum Digging Reach: 8380mm
	Minimum Swing Radius: 2530mm

Detailed Photos

MINI EXCAVATOR Features:
Featuring a Cummings engine with an electronic high-pressure common rail system, characterized by high low-speed torque, and complemented by a high-displacement hydraulic main pump and Carter Heavy Machinery's proprietary control system, this setup offers increased operational efficiency, effectively enhancing the overall fuel economy of the machine.
Key Features
1. Equipped with specialized hydraulic components from SOLID Heavy Machinery, allowing for more precise flow distribution, lower system pressure loss, and higher system reliability, resulting in improved overall machine control.
2. Featuring high-strength working equipment and rotary mechanism, enabling more coordinated compound actions, increased resistance to impact, greater adaptability to various working conditions, and a longer machine service life.
3. Fully compliant with CE certification requirements, featuring a cab that meets TOPS and FOPS certification requirements, ensuring safer operations. It comes with a two-stage adjustable suspension seat, silicon oil shock absorbers, and a high-capacity heating and cooling air conditioning system for enhanced operator comfort.
Working Principle
Rated Products
Packaging & Shipping

We have many ways of delivery. Safe, fast and trust1. Container: which is cheapest and fast.2. Bulk cargo ship: which is better for bigger construction equipment3. Flat rack ship: which is better for bigger machine and also no need to dismantle4. RO RO ship: which is good for every machine and faster.You can depend on your own requires to choose one favorite.Delivery: Within 20 working days after your payment.
Company Profile
SOLID was founded in 2008 year. Since then, SOLID has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.SOLID is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2ND in the list of China's Top 100 Machinery Manufacturers. SOLID is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being "Rigorous, Practical, Progressive, and Creative" in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.SOLID mainly supply Hoisting machinery, MiningMachinery Machinery, , Excavators, Loaders, Road Machinery, Piling Machinery, Non-Excavation Machinery, Concrete Machinery, Special Vehicle, Aerial Working Equipment, Sanitation Machinery, Fire-fighting Machinery, Tunnel Machinery, Resource Exploration Machinery, Port Machinery and so onSOLID products, including mechanical vibratory road rolls, excavators and motor graders, have successfully participated in the construction of the largest railway project in the Philippines, thanks to their outstanding performance and comprehensive after-sales service. These three types of machines have contributed to the project's progress in an organized manner. During our on-site visits to customers, they expressed that SOLID products are reliable in quality, and the compact excavator equipped with a hydraulic breaker delivers excellent impact force. This effectively ensures the project's advancement and contributes to its completion within the expected timeframe, providing additional momentum to the development of local livelihood projects.


FAQ
1. How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.

2. What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 7-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, it depend on the order quantity.

3. Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.

4. How can we ensure quality?
The final inspection is always carried out before shipment.

5. How to install the equipment after purchasing?
We will provide professional installation video to illustrate.

6. What is your MOQ?
1 Set

---
