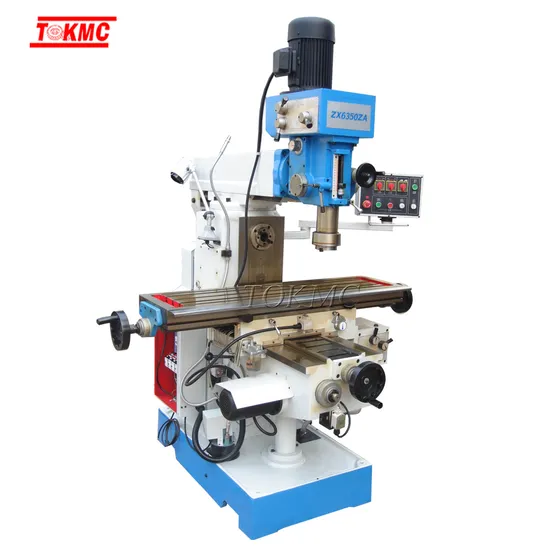

Milling Machine (ZX6350ZA ZX6350ZB)

Product Description

Milling Machine (ZX6350ZA ZX6350ZB)
Features:
*Hardened and ground table surface;
* Gear-driven mechanical feeding on X,Y axis with rapid backward and forward feeding function; motorized lifting and falling of table on Z axis
*Vertical milling head is gear driven and mechanical feeding; It can swivels ±45°;
* Easy exchanging between horizontal and vertical milling.

Item	ZX6350ZA
Spindle taper	ISO40
Distance from spindle to table	90-370
Distance from spindle to column	200-550
Spindle speeds	90-2000(V) 40-1300(H)
Table size	1250×320
Table travel(X/Y/Z)	600/300/280
Feeding range of longitudinal,cross travel	22-555
Auto-feeding of Z-axis	560
T-slot(number-width-distance)	3/14/70
Main motor power	2.2
Overall dimension	1600×1500×2270
N.W./G.W.	1550/1700

Standard accs.:
working light,
coolant system,
Manual lubricating system,
Oil tray,
Collected operating button station,
Milling chuck;
Drill chuck,
Vice,
Horizontal milling arbor,
Changing sleeve,
Spindle draw-bar,
Dead wrench,
Allen wrench,
Optional accs.:
DRO/XYZ;
Universal dividing head,
Rotary table,
Slotting head
CE standard electrics,
CE spindle cover,
58pcs Clamping kits

---
