US$3,500.00-5,500.00
|
1 set
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
CNC Control System
Mach/GSK/Siemens
Machine Type
Automatic CNC Lathe Machine
Key Word1
CNC Lathe Machine Price
Similar Model
Kc4s Ikc4s 210CNC CNC210 180CNC CNC180
Similar Brand
Sumore Sieg Syil Wmt Weida Wddm
Transport Package
Plywood Box
Product Description
Product Description
210mm Swing DIY Hobby Mini Metal CNC Lathe CNC210 for Mold Watch Auto Parts School Training Education Most Popular Benchtop GSK Mini CNC Lathe Machine for Hobby DIY Education Laboratory Mold Watch CK210 CNC210 SP2120ML CK6128 CK6130

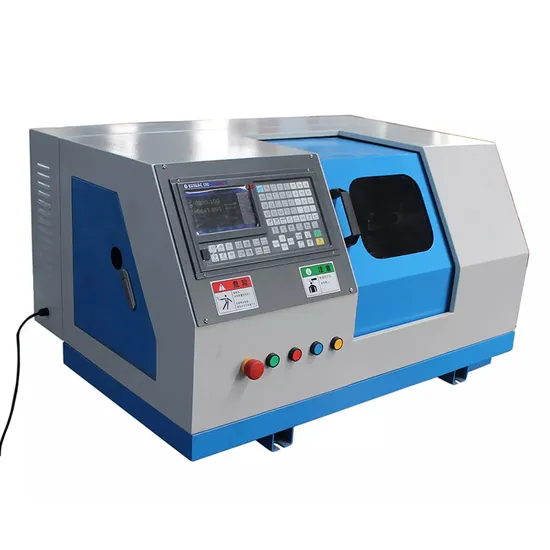

SP2120 210mm Swing DIY Hobby Mini Metal CNC Lathe CNC210 for Mold Watch Auto Parts School Training Education is new machine and we won't provide used cnc lathe machine, this light industrial cnc lathe machine is for job work, it's quite competitive in the market. It is made in China but has similar quality as made in Taiwan cnc lathe, but it has the same quality as made in German cnc lathe machine. Features / advantage of cnc lathe machine is as below:
Quick detais
1.Swing over bed:200mm
2.Work piece:380mm
3.Spindle bore:20mm
4.Tool stange:4 ways
5.Control system:Mach3
6.Power:150W
Feartures
1. Engineers from high grade castings.
2. The lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. Induction hardened bed.
4. The cutting tools carrier is equipped with 4-station tool holder.
5. All machines have to pass the check list of the machine precision before shipment
6. Can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
7. Electric turret installed.
8. Fully enclosed protective cover.
Product Parameters
Model
| SP2120ML
|
Swing over bed
| 210mm
|
Distance between centers
| 250mm
|
Width of bed
| 100mm
|
Spindle bore
| 26mm
|
Spindle speed
| 50-2250r/min
|
Spindle taper
| MT3
|
Z-axis moving
| 2000mm/min
|
X-axis moving
| 1000mm/min
|
Z-axis feeding
| 500mm/min
|
X-axis feeding
| 250mm/min
|
Z-axis travel
| 250mm
|
X-axis travel
| 80mm
|
Tool position
| 4
|
Angle of the tool post
| 360°
|
Tape of tailstock
| MT2
|
Z,X-axis position accuracy
| 0.01mm
|
Position accuracy of tools
| 0.005mm
|
Main motor power
| 600W/1.1KW
|
Packing size(L×W×H)
| 1260×820×1360mm
|
Weight(n.w/g.w)
| 160/200kg
|
Control system
| GSK SIEMENS MACH
|
Application
| DIY Hobby Education School Laboratory
|
Working material
| Nylon Aluminium Steel Copper
|
Usage
| Metal Parts Machining
|
Function
| Turning
|
Max. swing over bed
| 210mm or 180mm or 250mm OEM
|
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
>>
