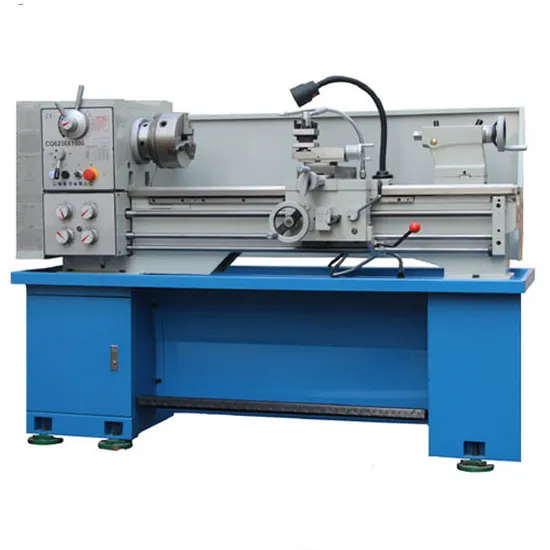

Mechanical Lathe Metal Lathe Lathe Machine (CQ6236)

Product Description

Product Description
Mechanical Lathe Metal Lathe Lathe Machine (CQ6236)
speed adapts to the part radius --consisten track
speed ensure uniform quality finish at any diameter
all tracks are induction hardened and precision ground
Solid, grey cast-iron prism-shaped machine bed, 218 mm in width
Newly developed, optimized spindle stock guaranteed high rigidity
Complete with 52 mm spindle bore to allow processing of large shaft diameters
Chip tray opens to the front keeping space requirements minimal
Electro mechanic foot brake clearly reduces downtime significantly
Logical speed and feed settings, clearly arranged, easy and precise control
Guaranteed spindle concentricity (≤ 0.009 mm)
Universal in use for e.g. training purposes, tool shop, production,
Removable bridge to allow for processing of workpieces with a large diameter
State-of-the-art spindle bearing with precisely manufactured angular ball bearings
Tailstock can be repositioned for bevel turning, handwheel features adjustable fine scale (0.02 mm)
Detailed Photos
Product Parameters

Model	CQ6236x1000mm
Swing over bed	360mm
Swing over cross slide	206mm
Swing in gap diameter	490mm
Length in gap	130mm
Length between centers	1000mm
Center height	180mm
Width of bed	218mm
Taper in nose	MT6
Spindle nose	D1-5
Spindle bore	52mm
Speeds range	65-1810mm
Compound rest travel	76mm
Cross slide travel	200mm
Leadscrew thread	3mm pitch
Leadscrew diameter	24mm
Cutting tool max section	16x16 mm
Longitudinal feeds metric	0.053-1.291mm/rev(40Nos.)
Longitudinal feeds imperial	0.002-0.051"/rev(40Nos.)
Cross feeds metric	0.011-0.276mm/rev(40Nos.)
Cross feeds imperial	0.001-0.011"/rev(40Nos.)
Thread metric pitches	0.4-7mm
Thread imperial pitches	60-4 T.P.I
Thread diametral pitches	44-16.DP
Thread module pitches	0.4-3mm
Quill diameter	32mm
Quill travel	100mm
Quill taper	MT3
Main motor power	1.5KW(50HZ)
Coolant pump power	40W(50HZ)
Packing size(cm)
NW/GW(kg)	640kg
