Dzjx Multifunctional Hydraulic Lift Vacuum Custom Mixing Tank 500L Dispersing Mixer Machine

Product Description

Product Description

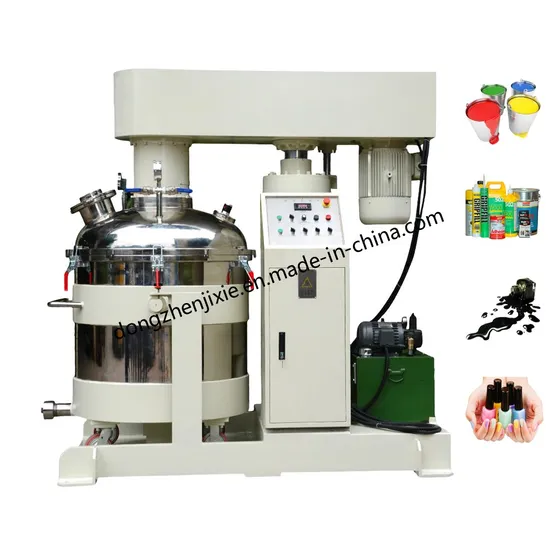

DZJX Multifunctional hydraulic lift vacuum custom mixing tank 500l dispersing mixer machine
*Mixing shaft: single shaft ,double shaft.
*Lifting Way: hydraulic lift,electric lifting,hand lifting.*Mixing Capacity: 50-5000 L.*Function: mixing and dispersing.
*Motor power: Customized.*Contact Material: stainless steel.
*Speed: controlled by frequency converter. *Customized functions: laboratory type, industrial type.(customized explosion-proof type, ordinary type, simple type)Working Principle The working principle of the high-speed dispersion machine is: the dispersion blade is inserted into the sample, the motor drives
the rotating body to rotate at high speed, the material is sucked into the dispersion head in the axial direction, and then these
media pass through the serrated shape between the rotating body and the fixed body at high speed. The small gap between the
high-speed rotating body and the fixed body produces extremely strong shearing force and crushing force, thereby achieving good
dispersion effect.1.Roof2.Stir-axis3.Paddle6.Electric control box Please contact us for more detailsOur Advantages
1.Automatic lifting system
The hydraulic lifting method is stable, convenient, and the structure is firm and durable.2.Small high speed disperserThe inverter is directly installed on the machine, and the display screen of the inverter directly displays the shaft speed.Adopt step less frequency conversion speed regulation mode, which is safer and more stable.3.Belt clamp disperser
There are three types of clamps: belt, pneumatic and hand-cranked.4.Double shaft high speed disperser
According to different materials, explosion-proof type or ordinary type can be selected.5.Sealed container
The mixing barrel and volume can be customized according to customer requirements to effectively reduce dust pollution.6.Motor cabinets are all explosion-proof
According to different materials, explosion-proof type or ordinary type can be selected.Please contact us for more details
Detailed Photos
Please contact us for more detailsProduct Parameters

Model	Power(kw)	wight(kg)	Speed range	size(mm)	Liftingmethod	1.Customizable explosionproof motors or fullyexplosion-proof moto cabinets
DZD-3	3	260	0-1440	1550*550*1400	Hydraulictt
DZD-4	4	260	0-1440	1550*550*1400	Hydraulictt
DZD-5.5	5.5	350	0-1440	1800*600*1750	Hydraulictt
DZD-7.5	7.5	350	0-1440	1800*600*1750	Hydraulictt
DZD-11	11	400	0-1440	1800*600*1750	Hydraulictt
DZD-15	15	450	0-1440	1800*600*1750	Hydraulictt
DZD-18.5	18.5	500	0-1440	1900*600*1800	Hydraulictt

DZD-22	22	550	0-1440	1900*600*1800	Hydraulictt	2.Double dispersion discscan be customized upon request
DZD-30	30	650	0-1440	2100*700*2100	Hydraulictt
DZD-37	37	750	0-1440	2100*700*2100	Hydraulictt
DZD-45	45	950	0-1440	2100*700*2100	Hydraulictt
Capacity 50-5000L can be customized according to customer requirements

Applications
High-speed dispersion is suitable for stirring, dispersing and dissolving liquid and liquid-solid materials in chemical industries such as coatings, dyes, pigments, inks, Paper Industry, adhesives, etc. It has the characteristics of less air absorption during stirring and dispersing, excellent mixing and uniforming effects, and can quickly dissolve materials and reduce particles by stirring and dispersing at medium and high speeds.Packaging & Shipping
Company Profile
Xinxiang Dongzhen Machinery Co., Ltd
1.With 36 years of professional production of rubber, food, medicine, chemical and mineral equipment experience, and has a goodcooperative relationship with the world 500.
2.All raw materials purchased with domestic and foreign well-known manufacturers.3.We have designed production lines for many companies, such as cosmetics production line ,clove production line, paint productionline, flour production line, yeast production line, detergent production line,etc. 4.1 Years Warranty, 14 Days Delivery, Factory Price. 5.14800m2 factory, Own R&D Team. 6.Free design service, free professional solutions. 7.Passed ISO9001, CE, SGS, Intetek certificates.

---
