Double Mould Motorcycle Tire Curing Press, Mc Tire Curing Machine

Product Description

Our Advantages:
1. More than 30 years experience in designing & manufacturing of rubber machines.
2. Jerry-build & inferior quality are never allowed.
3. Powerful technical team for customized service & professional oversea technical guide.
4. Strong processing capability for the most efficient machine delivery.

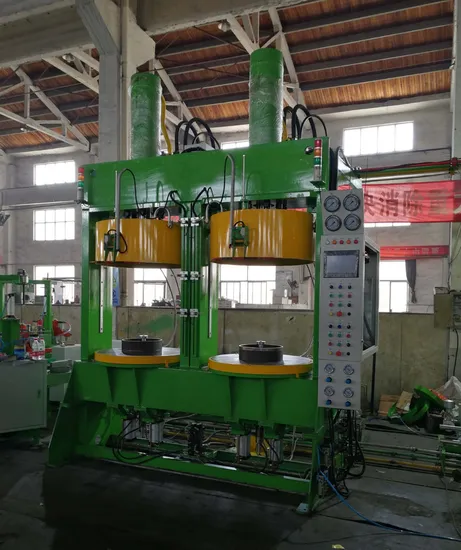

LLY-B845X100X1 Double mould motorcycle tire curing press, MC tire curing machine
Machine Usage:
2M type tire hydraulic curing machine is used for the shaping and curing various sizes of motorcycle tires. The main operations of this machine are all performed to complete by hydraulic cylinders. And the auxiliary operations are achieved by air cylinders. Thermal line section can be designed according to user requirements. This machine is of high production efficiency, easy operation, small footprint, and reliable performance characteristics.
Machine Introduction: LLY-B845X100X1 2M 34" type tire hydraulic curing machine is used for the shaping and curing of 12"-19" rubber tires. The main operations of this machine are all performed to complete by hydraulic cylinders. And the auxiliary operations are achieved by air cylinders. Thermal line section can be designed according to user requirements. Thismachine is of high production efficiency, easy operation, small footprint, and reliable performance characteristics. This machine is mainly composed of the machine host, safety devices, PCI, central mechanism, hydraulic systems, pneumatic, thermal systems, control systems, etc. Process data are set on the display to edit touch screen system (location convenient for operation, process data including circulating water temperature, pressure, thermal plate export outside temperature, external pressure, mould temperature, mould clamping force, each data records 3-5 seconds once to display disc curve and histograms, storage period is one year, with a copy USB port), error alarm system (internal pressure low alarm, low temperature alarm inside and outside temperature is too low, too high alarm).
Machine Features:
1. Durable frame structure with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design.
4. Less maintenance needed.
5. Easy installation.
6. Environment protection.
7. High safety configuration.
8. PLC control system.
9. High efficient and superior vulcanizing performance.
10. Low power consumption & labor saving.
Technical Parameters:

Applicable Tire Type	Motorcycle Tires	Motorcycle Tires
Specification	8"-21"	4"-12"
Mould Number	2-4	2-4
Total Pressure(each mould) (Tons)	100	60
Hydraulic System Setting Pressure(Mpa)	≤21	≤21
Hydraulic Working Pressure(Mpa)	≤19.5	≤19.5
Heating Plate Diameter(mm)	950	650
Insulation Cover Inner Diameter(mm)	Φ975	Φ700
Max. Heating Plate Spacing(mm)	1000	1000
Applicable Mould Height(mm)	120-300	120-300
()Mould Open(Close) Speed(mm/s)	60	60
Heating Plate Steam Pressure(Mpa)	Max. 1.0	Max. 1.0
Inner Pressure Steam or Compressed Air Pressure(Mpa)	1.5-2.3	1.5-2.3
Shaping Steam/Compressed Air Pressure(Mpa)	0.1-0.2	0.1-0.2
()Water(gas) Cylinder Using Pressure(Mpa)	1.5-2	1.5-2
Compressed Air Pressure for Control Use(Mpa)	0.35	0.35
Vacuum Pressure(Mpa)	0.013-0.026	0.013-0.026
Hydraulic Oil	46# Anti-wear Hydraulic Oil	46# Anti-Wear Hydraulic Oil
Pump Motor(KW)	Y180L-4-22	Y180L-4-22
Total Weight(kg)	11500	9500

Our Service:
1. Our engineer team can design customized machines for you and send the drawings for confirm.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box.
3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.
Our Package & Delivery :
FAQ:
1. Delivery time of the rubber machines?
Normally it needs about 25 days to 3 months according to the ordered machines' size and quantity.
2. What does your factory do regarding quality control?
We have the most professional engineer team to design the correct machines at the beginning, equip with the most advanced processing device to process the machine parts during the production period and finally arrange the most experienced assembly workers to assemble and check the final machines to 100% guarantee the superior quality and stable performance of each machine.
3. How long is your machines' warranty period?
The warranty period for our machines is one year from the day of normal working at the user plant.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support at the user plant with the charge of the required cost.
Small machines normally takes within 1~3 days.
Large machines normally takes about 30 days.
5. How can we go to your side for a factory visit?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao liuting airport.
Please advise us your time schedule in advance for us to pick up you at the airport.
Note: Please let us know: 1. total pressure 2. hot platen size(tire sizes) 3. working layer number 4. daylight 5. heating mode for us to design the specially customized curing press for you.

---
