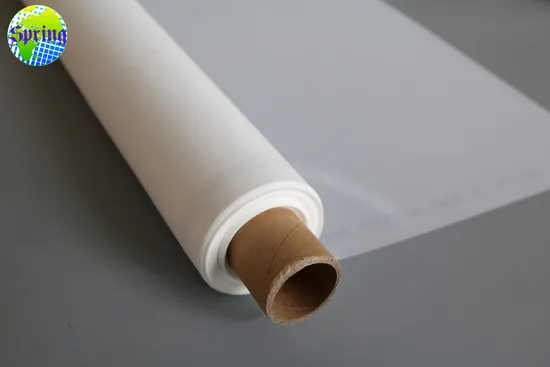

100% Nylon/Polyester/Polypropylene Monofilament Micron Filter Mesh -- 3-2000micron

Product Description

Product Name 100% Nylon/Polyester/Polypropylene Monofilament Micron Filter Mesh -- 3-2000micron
Product Features 1. Even opening, smooth surface
2. High tensive low elongation
3. Plain weave: 13-380mesh/inch
4. FDA, silicone oil qualification, RoHS, material report
Product Description 1. Material: 100% nylon/polyester/polypropylene/PP
2. Weaving: Plain weave or Twill Weave
3. Mesh Count: 4T~236T mesh/cm(13mesh~600 mesh/inch)
4. Max. Width: 365cm (143inch)
5. Color: White/yellow/black
6. Monofilament or Doublefilament
7. We can provide products with special specifications according to your demand.
Advantages 1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Imported weaving machines from Switzerland

Product Parameters

Nylon Mesh
Type	Mesh Count (/cm)	Mesh Count (/inch)	Thread Diameter (/um)	Mesh Opening (um)	Open Area (%)	Thickness (um)
JPP 4	4	10	550	1950	61	1020
JPP 5	5	13	400	1600	64	760
JPP 5	5	13	500	1500	56	940
JPP 6	6	15	350	1317	62	680
JPP 6	6	15	400	1267	58	780
JPP 7	7	18	350	1079	57	675
JPP 8	8	20	300	950	58	585
JPP 8	8	20	350	900	52	685
JPP 9	9	24	250	861	60	465
JPP 10	10	25	300	700	49	576
JPP 12	12	30	250	583	49	470
JPP 12	12	30	300	533	41	585
JPP 14	14	35	200	514	52	375
JPP 16	16	40	200	425	46	380
JPP 18	18	45	200	356	41	385
JPP 20	20	50	150	350	49	375
JPP 20	20	50	200	300	36	385
JPP 24	24	60	150	267	41	285
JPP 28	28	70	120	237	44	215
JPP 30	30	76	120	213	41	225
JPP 32	32	80	100	213	46	170
JPP 36	36	90	100	178	41	180
JPP 40	40	100	100	150	36	190
JPP 43	43	110	80	153	43	135
JPP 48	48	120	80	128	38	145
JPP 56	56	142	60	119	44	96
JPP 59	59	150	60	109	42	102
JPP 64	64	163	60	96	38	108
JPP 72	72	183	50	89	41	88
JPP 80	80	203	50	75	36	92
JPP 90	90	230	43	68	38	70
JPP 100	100	254	43	57	32	72
JPP 110	110	280	43	48	28	76
JPP 120	120	305	43	40	23	78
JPP 130	130	330	43	34	19	80
JPP 140	140	355	38	33	22	75
Remark: These are theoretical data for reference only. Mesh Opening & Open Area only slight error according to actual data.

Application: Factory Show Shanghai SPRING is a professional manufacturer vendor of polyester mesh, nylon mesh, PP mesh, polypropylene mesh. The factory covers an area of more than 50,000 square meters. The main weaving equipment includes more than 130 sets of Sulzer Ruit looming machine HP7300 and P7150, as well as molding machines and intelligent electronic stripe warping machines, washing equipment and setting machines. The main production of woven mesh specifications for 18 mesh to 420 mesh polyester mesh, 10 mesh to 600 mesh nylon mesh, the maximum width of 3.7 meters, stable quality, timely service, monthly output of more than 15,000 meters. To meet the domestic production needs of all kinds of customers, at the same time the company's screen products have been exported to overseas markets, mainly exported to Central Asia, Southeast Asia, South America, Europe. Widely used in electronics, textile, ceramics, glass and other industries of printing plate; As well as the filtration industry of industrial filtration, liquid filtration, filter cylinder filter bag, dust and dust removal, food processing, flour screening, air conditioning screen, etc.
FAQ What is the MOQ: For the normal product, we don't have strictly limit about the Minimum Order Quantity. We can provide you small samples or the samples as you want to test our mesh sample, if ok, place trial order, then big orders. How to pay the sample or trial cost or express cost: Paypal, West union, Personal bank account, Company bank account as you hope. How long time can be ship out for the sample and trial order: Usually small order or samples takes 2-5days more or less. Delivery time: For normal items usually takes one week more or less under 5000M per order. For big orders we will confirm it for you when you place order. For special products also need to be confirmed before the order placed. What kind of package of the goods? Usually for normal orders, the mesh rolled on paper tube, then label card, then plastic bag, then carton box, then sailcloth outside. When can you confirm the payment after we transfer? We have special staff to check the money every day, we will inform you once we get it within 2hours. DO you accept LC at sight? Yes, we accept LC at sight for big orders. Usually, over 10,000$ LC at sight is acceptable.

---
