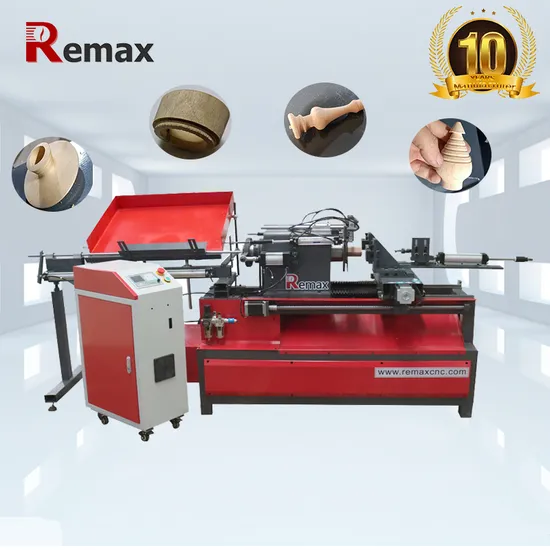

Mini Wood CNC Turning Lathe with Chuck for Handle Tools CNC Wood Lathe Machine

Product Description

mini wood cnc turning lathe with chuck for handle tools wood cnc wood turning machine
Product Description
Application:
Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs,cRoman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.etc.
Feature
1). Maximum working length is 3000mm, Max.turning diameter is 300mm.
2).You can choose 1 cutter machine, Also can choose 2 cutters at two sides of the machine, the 2 cutters work together,improve the efficiency greatly.Also , you can choose machine with one spindle for engraving pattern
3).Linear square rails, ballscrews,some electronic components are imported, high precision and durable.
4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.
5). Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.
6). If you want to engrave stripe, we will add a 3.5kw air cooling spindle, and add a 4.0kw stepper motor on 1 cutter machine/ a 5.5kw stepper motor on 2 cutters machine.
7). We will customize the size of machine according to customer's requirments
Detailed Photos

Product Parameters

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	X,Y,Z Accuracy	±0.02mm
3	X,Y,Z Repositioning Accuracy	±0.0254mm
4	Table Surface	T-slot Table
5	Frame	Welded by steel
6	Transmission	Hiwin square rail and TBI ball screw for 3 axis
7	Max. Power Consumption	2.5kw~3Kw (without spindle)
8	Max. Rapid Travel Rate	15000mm/min
9	Max. Working Speed	8000mm/min
10	Spindle Power	2.2kw/3.2 /4.5KW water cooling (3kw for option)
11	Spindle Speed	0-24000RPM
12	Driver and Motor	Leadshine and Stepper Motor
13	Working Voltage	220/380V 50/60Hz
14	Command Language	G Code
15	Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
16	Computer Interface	USB
17	Software	Type3 or Artcam
18	Running Environment Temperature	0 - 45 Centigrade
19	Relative Humidity	30% - 75%
20	Inverter	Delta/Fuling
22	Limit switch	OMRON
23	Tool sensor and lubrication	With

sample picture

Packaging & Shipping
Our service
1. Our technician can give you remote guide online(Skype or WhatsApp) if any question.
2. English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/skype/tel etc

FAQ

A This is the first time I use this kind of machine, is it easy to operate?
1. There are English manual or teaching video that show how to use machine.
2. If there is still have any question, please contact us by e-mail /
skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
6. Send your order by air or by sea.
