Product Details
Product Description
Product Description
product feature；

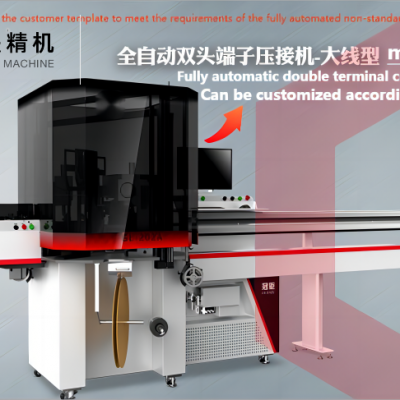

Equipment Name Model LJ-202A Automatic double terminal pressing machine
Main functions A, B end cutting, peeling, riveting terminals (optional double head through the waterproof plug; Double-end sheath)
Control mode Man-machine interface + microcomputer adjustment
Pay-off system computer automatic wire feeder, suitable for coil loading + shaft loading
Detection device terminals, wire knotting, missing wire alarm, air pressure detection
Terminal pressure detection system can be optional (domestic and imported systems are applicable)
Suitable mold OTP standard horizontal mold, straight mold, flag mold, can be customized European, Korean mold
Terminal pressing capacity 2T/3T Super mute terminal machine (with servo terminal machine)
Product Parameter：
Power supply 50/60HZ 220V single-phase
Processing length 65mm(full length) -99999mm
Wire processing wire range AWG#10-AWG22#(synchronous belt high-speed wire delivery)
Terminals can be processed 3.96 flag type terminals /187/250 and other special terminals of automotive wire harnesses and home appliances wire harnesses
Production capacity 3000+ (2m long time) the actual efficiency depends on the measured wire
Peeling length 0-18mm at end A and 0-18mm at end B
Cutting accuracy ± (0.2%*L+1) mm
Air pressure 0.5-0.7Mpa (5-7KG/m³)
Dimensions 6800*1300*1900mm (including pay-off rack and long line take-up device dimensions)
Weight about 1000KG±15KG Supporting pay-off rack weight about 80KG
Fully automated non-standard equipment can be customized according to customer samples.
>>
