Kapper Ionizing Air Nozzle Anti Static Anti Dust Blower

Product Description

SECTION 1:DESCRIPTION***********************************************************

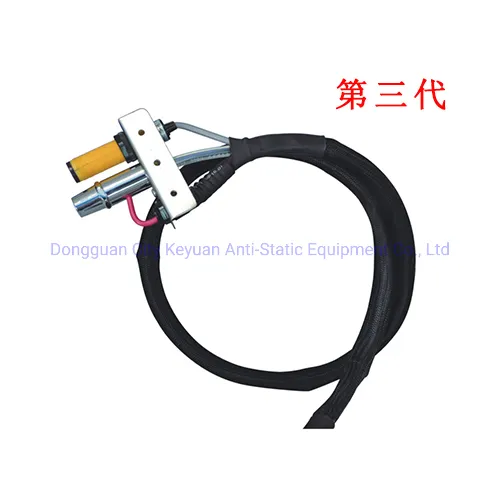

KP3004B-7T 3th generation ionizing air nozzle is a fixed static elimination device developed and produced by Kapper Company to eliminate static electricity on the surface of objects. It can be used with compressed air and high-voltage power supply.
KP3004B-7T 3th generation ionizing air nozzle can generate a large amount of positive and negative charge air flow, which is blown out by the compressed air at high speed, and can neutralize the charge on the object. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. The purpose of static electricity.
KP3004B-7T 3th generation ionizing air nozzle is widely used in coating, photoelectric, electronic production and packaging, printing, automation equipment and other industries.
SECTION 2:FEATURES***************************************************************
1.Neutralize static electricity quickly.
2.Ion air flow covers a large area.
3.Small size and easy installation.
4.The air nozzle can be equipped with a foot switch to control the compressed gas, which is available for customers to purchase.
5.Snake tube can adjust wind direction arbitrarily.
6.The air nozzle has a good grounding protection function.
SECTION 3:SPECIFICATIONS********************************************************

Operate voltage	AC 4.6KV
Working distance	150-300mm
Air supply connector	Ф8mm(Customized length)
Ion balance	≤|±50V|(300mm from air outlet)
Discharge time	≤1S(300mm from air outlet)
Use medium	Clean compressed air
Working temperature	0ºC-50ºC
Working humidity	<75%
Power cord length	2.8M(customized length)
Compressed air pressure	0.3-0.8Mpa
Air flow velocity	3-10m/S
Noice	≤65dB
Ozone concentration	≤ 0.03 ppm (150mm from air outlet)
Weight	0.7kg(indluded 3M power cord)
Power supply	KP4001A / KP4004A

SECTION 4:TEST RESULT**********************************************************

Testing condition
Humidity:≤60% Testing voltage:1KV-100V Temperature:22ºC
Distance		300mm
Decay time	Positive	1.0s
	Negative	1.0s
Offset voltage		≤±50V

* The test result by ME268A comprehensive electrostatic tester shall prevail.
* Test according to IEC - 61340-5-1 A 6.
* Test data may change with the surrounding temperature and humidity.
SECTION 5:APPLICATION************************************************************
SECTION 6:KAPPER NEW FACTORY*************************************
SECTION 7:CERTIFICATES******************************************************
SECTION 8:KAPPER STYLE****************************************************

---
