X-Band with Tas Function 1m/S~100m/S Radar for Sale

Product Description

1.Product Overview
RD07A type X-band tetrahedral array radar consists of four 2D phased arrays and adopts all-solid-state, fully coherent and pulsed Doppler system, which can realize effective detection and early warning of "low, small and slow" targets all day. The radar can search and track the targets in a 360° airspace range, and has the function of tracking multiple targets simultaneously, which is more reliable than mechanical scanning radar.
2.Technical Indicators

Parameters	Indicators
Frequency band	X-band
Detection range	≥5km(UAV, RCS:0.01m²)
Blind zone	200m
Angle coverage range	Azimuth: 0°~360°, pitch: 0°~60°(Configurable)
Tracking function	With TAS function
Number of Tracking Targets	≥16
Speed measuring range	1m/s~100m/s
Accuracy	Scanning: Distance: <10m, azimuth: <0.6°, pitch: <0.6° TAS: Distance: <10m, azimuth: <0.5°, pitch: <0.5°
Target update rate	≤6s (based on pitch coverage range)
Interface	Network interface
Weight	≤70kg
Power supply	AC220V
Power consumption	≤1300W
Size	Single array size: ≤315mm*315mm*133mm
Operating temperature range	Operating temperature: -40ºC~+60ºC

3.Physical map

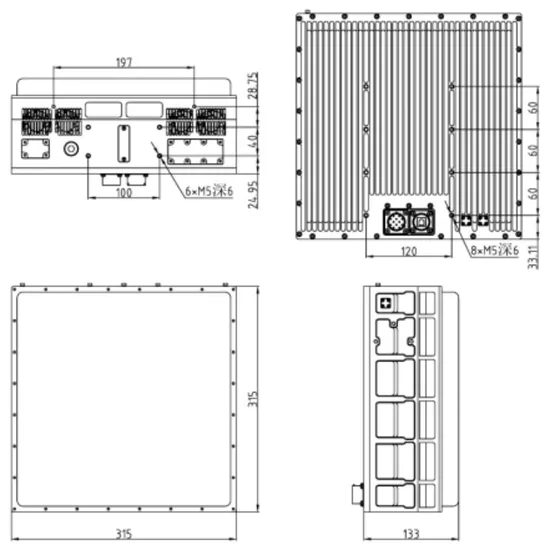

4. Size and installation position
Single front size
Typical installation and size (installation can be designed by the user)
5.Technical Features
It adopts machine learning technology, which breaks through the traditional MTI+MTD detection method, and effectively solves the problems of "low, small and slow" target detection difficulty and high false alarm rate in complex environments; It is able to detect passive targets such as UAVs, paragliders, powered delta wings and floating balls; It has extremely low false alarm rate and stable trajectory tracking, and can adapt to high maneuvering flight of targets; It has the ability to adapt to the battlefield environment; It has the ability to suppress meteorological clutter, and can work all day.
