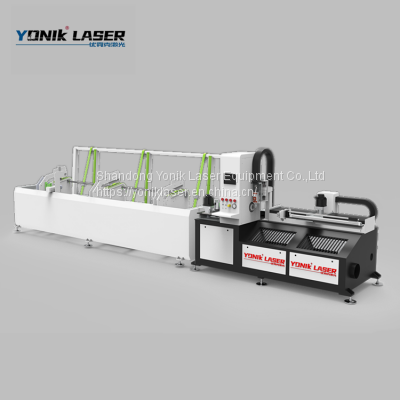

Model | YONIK-6004JA | YONIK-6007JA | YONIK-6009JA | ||
| Profiling Cutting Sizes | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ40mm | Profile Length≤6500mm, 5mm≤Round Pipe Diameter≤φ68mm | Profile Length≤6500mm, Φ5 Mm≤Round Pipe Diameter≤φ90mm | ||
| Automatic Feeding Profile Size | Profile Length≤6500, Φ5mm≤Round Pipe Diameter≤φ40mm | Profile Length≤6500, 5mm≤Round Pipe Diameter≤φ68mm | Profile Length≤6500, Φ5 mm≤Round Pipe Diameter≤φ90mm | ||
| Single Pipe Weight | ≤50Kg | ≤80Kg | ≤100Kg | ||
| Z Axis Travel | 150 mm | 150 mm | 150 mm | ||
| Tail Material | 50mm | 50mm | 50mm | ||
| Y Axis Positioning Accuracy | ±0.05mm/m | ||||
| Y Axis Repositioning Accuracy | ±0.03mm/m | ||||
| Y Axis Max Acceleration Speed | 1.5G | ||||
| Y Axis Max Speed | 85 m/min | ||||
| Max Rotating Speed of Chucks | 150r/min | ||||
