Plough Type Dry Powder Blending Machine for Chicken Granule

Product Description

Plough type dry Powder Blending Machine for Chicken Granule
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.

1, What materials do you mix? (Names of raw materials?) 2, What is the power fineness (or particle size)? (mesh, mm) 3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3) 4, How many kgs or liters to be mixed per batch? 5, What is the distance from bottom discharge outlet to ground? (cm, mm, m) 6, What construction materials do you require? (Please choose below option) A, all construction materials mild steel; B, contact parts stainless steel, non-contact parts mild steel; C, all construction materials stainless steel;

1 Working principle:

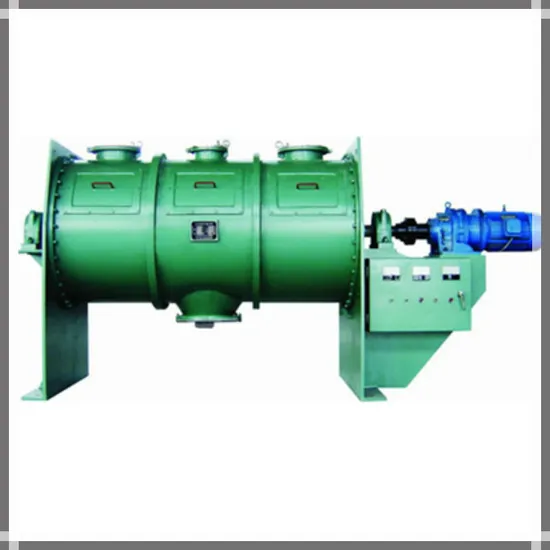

CMPS series Plough Shear Coulter Mixer is comprised of horizontal cylinder-shaped trough, single shafts with plough shear agitators, high speed choppers, top cover with opening(s), support frame and transmission unit. The plough shear agitators rotate to drive materials move radilly; high speed choppers scatter the materials; so materials are mixed well by rotation of plough shear agitators and high speed choppers.
2 Performance & features:
2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Plough agitators & choppers: quantities depend on mixer size;
2.04 Mixer tank: horizontal, cylindrical tank;
2.05 Shaft: horizontal, hollow, integral single shaft;
2.06 Mixing time: 5-30minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Main shaft seal: (Teflon) stuffing seal or air purge seal;
2.11 Openings: feeding inlet, manhole, and inspection & connection port;
2.12 Discharge valve: pneumatic or manual flap discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);

3 Optional features:
The following optional features are available: wear-resistant and anti-corrosion materials, surface treatment; continuous mixing; gear box reducer; changeable speed; mechanical seal; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.

4 Technical specifications:

Mixer model	Working volume (L)	Rotation speed (rpm)	Motor power (kw)	Overall dimension (mm)	Machine weight (kg)
CMPS-50	20-30	80	1.1	1400×580×650	300
CMPS-100	40-60	80	2.2	1600×680×800	400
CMPS -300	120-180	80	4	2000×800×1100	700
CMPS -500	200-300	80	5.5	2600×1000×1200	950
CMPS -1000	400-600	80	11	3000×1250×1300	1650
CMPS -2000	800-1200	60	18.55	3600×1500×1700	2200
CMPS -3000	1200-1800	60	22	4000×1600×1800	3200
CMPS -4000	1600-2400	60	30	4500×1600×2000	4500
CMPS -5000	2000-3000	40	37	4700×1800×2100	5500
CMPS -6000	2400-3600	40	37	5000×2000×2300	6500
CMPS -8000	3200-4800	20	45	5300×2300×2500	7500
CMPS -10000	4000-6000	20	55	5900×2300×2500	9500
CMPS -12000	4800-6000	15	55	6200×2400×2600	11000
CMPS -15000	6000-9000	15	75	6400×2600×2850	12000
CMPS -20000	8000-12000	12	75	6800×2700×3100	13000

5 Mixers Album:
6 Application Industry:
7 Factory Album:

---
