US$22,000.00-28,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.

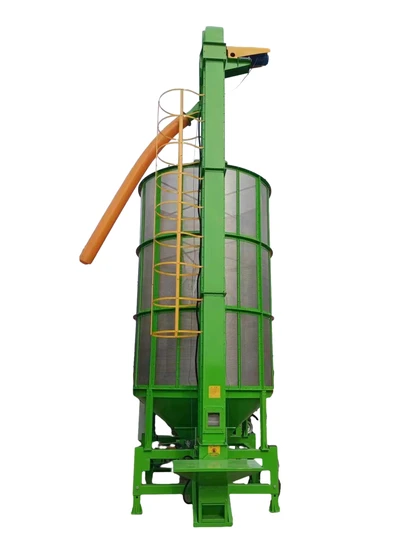

Grain drying tower-A
Drying Medium
Superheated Steam
Operation Pressure
Atmospheric Pressure
Optional Models
Natural Gas, Oil, Electricity
Optional
High Output of 5-1500 Tons Per Hour
Support Customization
Customized Mobile and Fixed Models
Transport Package
Equipment Outer Packaging Wrapping Film
Specification
5641*2475*6325
Production Capacity
3000 Units Per Month
Product Description
Product Parameters
| No | Item | | |
| 1 | Model | / | 5FS-120 |
| 2 | Dryer Type | / | Cycle |
| 3 | Dimension(L*W*H) | mm | 7700×2500×6500 |
| 4 | Loading Capacity | t | 2.5tons/1-3h |
| 5 | Drying Rate | %/h | 10tons/1-4h |
| 6 | Dry Height | mm | 5000 |
| 7 | Volume | M3 | 18.25 |
| 8 | The height of the slow section | mm | 5000 |
| 9 | Hot-Blast Temperature | ºC | 5~120 |
| 10 | Air heater | Quaninty | / | 1 |
| Model name | / | |
| RPM | r/min | 1460 |
| Wind Pressure | pa | 2400 |
| Rate of Flow | M3/h | 13000 |
| Motor Power | kW | 15 |
| 11 | Burner | Model | / | Diesel |
| Exchanger Type | / | Indirect Heat exchange |
| Smoke fan | Type | / | |
| RPM | r/min | 2770 |
| Flow | M3/h | 980 |
| Motor | kW | 0.75 |
| Thermal Power | kJ /h | 1674400 |
| Fuel Typpe | / | 0#Diesel |
| Heading Model | / | Directly |
| Number of Burner | / | 2 |
| 12 | Discharger Motor | kW | 11 |
| 13 | Elevator Produtivity | t/h | 10 |
| 14 | Elevator Model | kW | 4 |
Product features: hassle-free setup and zero site requirements: Users do not need to secure construction land or build facilities. There's no need for investment in hoists, conveyor belts, unloading pits, or any additional supporting structures. Benefit from efficient drying with peace of mind: Leveraging the latest international standard drying process, our equipment boasts over 50% increased efficiency compared to traditional drying solutions.
Efficient drying in one warehouse within 6 to 8 hours, ensuring no increase in waist explosion rate, no rise in crushing rate, and maintaining consistent rice yield.
Effortless operation and adaptable mobility: Customize drying parameters according to different crops and manage the entire drying process with just one operator, significantly reducing labor costs.
Intelligent and eco-friendly operation: Features a direct-heating blast furnace, ensuring high thermal efficiency and rapid temperature rise. The high degree of intelligence minimizes the need for constant oversight.
Clean burning hot air, ensuring no contamination of food.
>>
